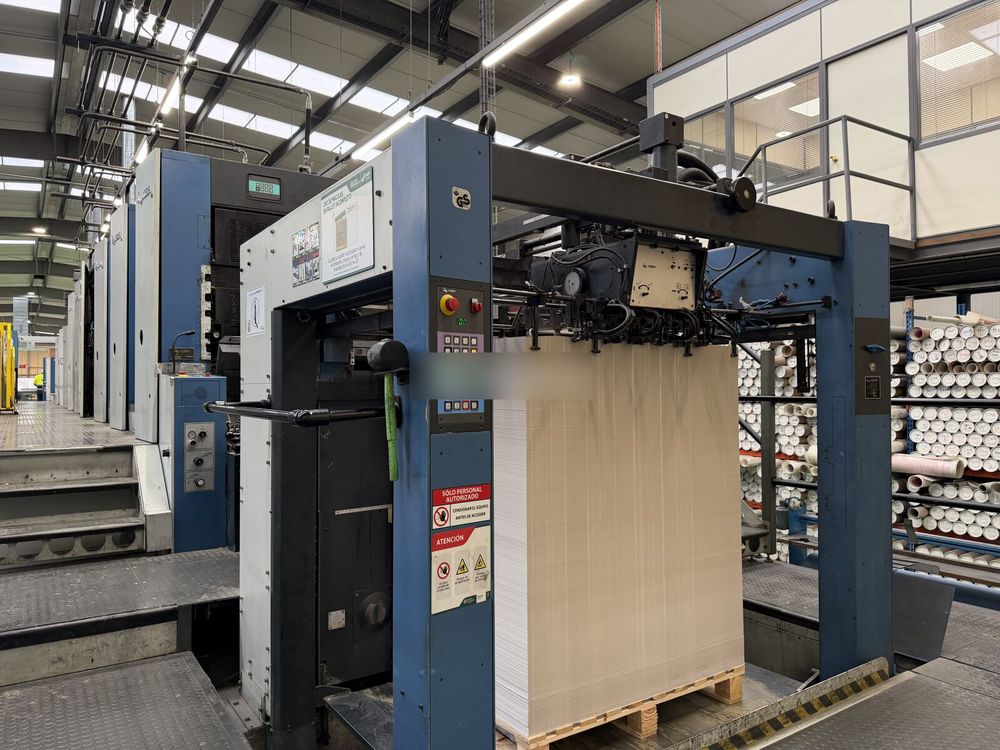

KBA RA 142-6+LTL 1.020 x 1.420 mm

Machine Control:
Control Unit: ErgoTronic
Measuring system: id:438055

Feeder :
Feeder type: KBA high performance stream feeder
Non-Stop
electromechanical double sheet control
Double sheet control
Anti static

Units :
Number of printing units: 6x
Number of coating units: 2x
Coating unit with chamber doctor blade
Plate changing: PWVA (Full Automatic Plate Change)
Dampening: KBA Varidamp
Washing device: All Automatic washers (blanket. rollers and impression cylinders)
Ink temperature control

Delivery :
Delivery type: extended High Pile delivery (2.600 mm)
Non-Stop
Dryer: IR Hot air
IR Dryer
Powder device: Weko AP 262

General :
Cardboard Package
Logistic System
Raised machine: Yes. 400mm

Periphery:
Cooling: Baldwin CombiLiner
Watercooled

Technical Details:
Max sheet size: 1.020 x 1.420 mm
Min sheet size: 600 x 720 mm
Max print size: 1.010 x 1.420 mm
Plate size: 1.145 x 1.430 mm
Thickness: 60 g/m² - 1.2 mm
Output: 14.000 sheets/hour

Technical Details :
Mechanical Speed: 14.000 sheets/hour
