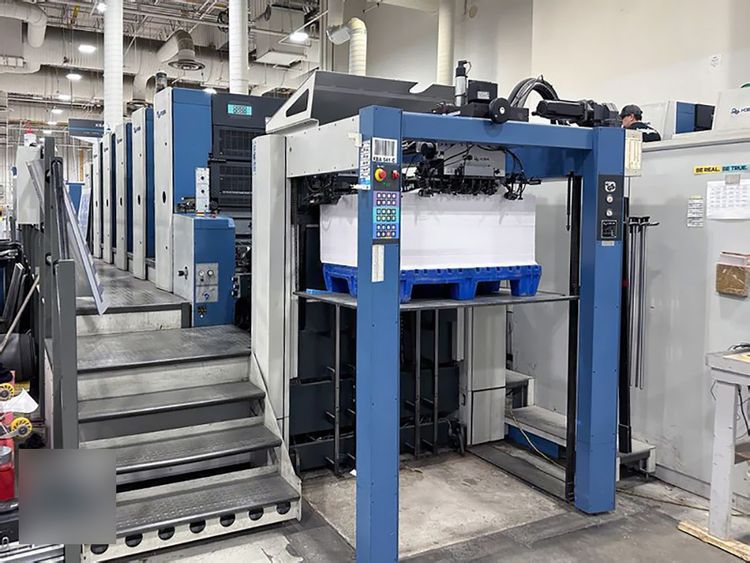

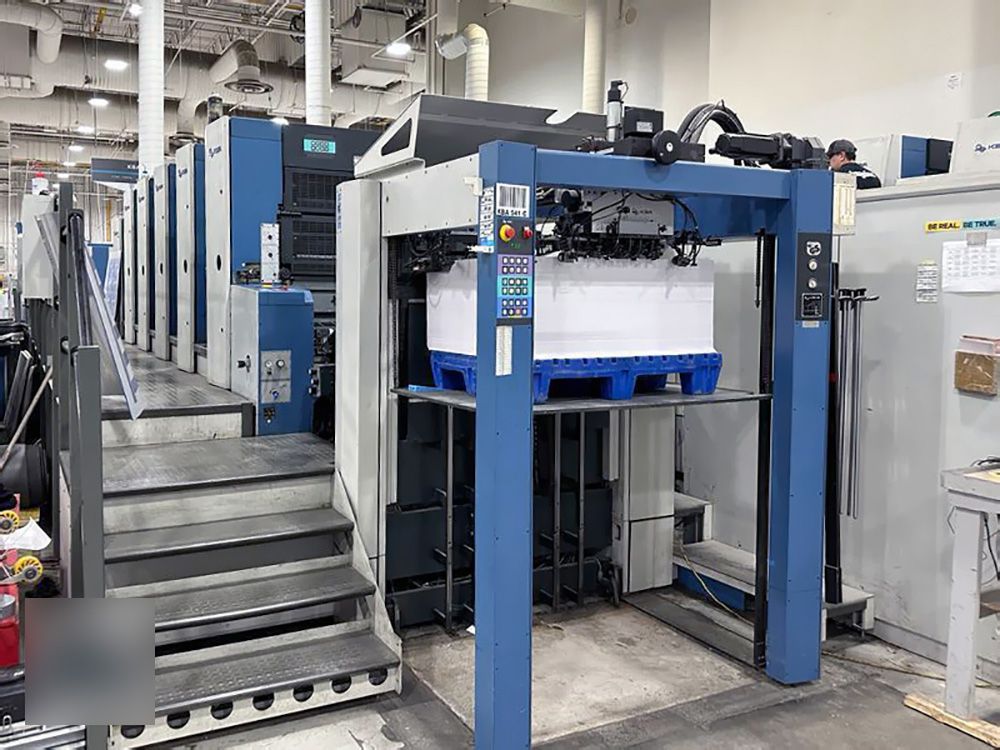

KBA Rapida 105-5+LX CX Universal 720×1'050 mm

Equipment:
pallet non-stop feeder,
preliminary settings for the print run with the Presetn option
Vacuum belts on the feeding table
Alcohol dampening Varidamp Delta
Device for recirculation and cooling of the alcohol solution Technotrans Combi
Semi-automatic plate change PWHA
Thermostatting of inking units, all automatic washes
KBA ErgoTronic control panel
KBA ColorTronic : remote adjustment of inking, dampening units, remote control of axial, radial
and diagonal registers, combined system for measuring colors and optical densities
KBA Densitronic S CX package for printing on thick materials (up to 1.2 mm) , varnishing section
of the chamber-doctor type Harris & Bruno, extended delivery built into the delivery
IR dryer Eltosch , graphite dust Weko AP 262, non-stop option at the delivery, the machine is raised by 380 mm
235 million copies printed

Max. format 720×1'050 mm
Min. format 360×520 mm
Max. printing format 710×1'040 mm
Max. speed 15'000 l/h
Printed materials 0.04 - 1.2 mm
Dimensions 12'120×4'030×2'280 mm
Weight ~48'600 kg
