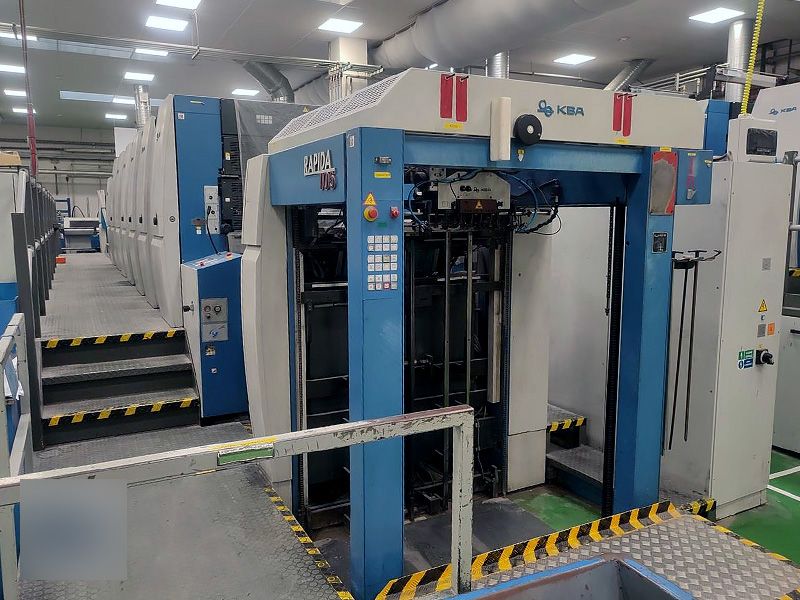

KBA Rapida 105-6+L ALV CX Universal 720×1'050 mm

Equipment:
shaftless pallet non-stop feeder
DriveTronic antistatic Kersten preset functions
Preset vacuum belts on the feeding table
Varidamp alcohol dampeningwith recirculation and cooling device
Baldwin thermostatting of ink units
KBA ErgoTronic control panel:
- KBA ColorTronic - remote control of ink registers, dampening and registers
- KBA Densitronic S - system for measuring colors and optical densities - support of the CIP3 protocol
ACR (Automatic Camera Register) register control and automatic adjustment system
FAPC automatic printing plate change all automatic washes package for printing on thick materials
CX (up to 1.2 mm) varnishing section of the chamber-doctor type Harris & Bruno extended delivery
ALV (2.6 m) with built-in IR dryer Eltosch non-stop sheet delivery
Grafix Megatronic graphopust machine raised by 375 mm

Max. format 720×1'050 mm
Min. format 360×520 mm
Max. printing format 710×1'040 mm
Max. speed 15'000 l/h
Printable materials 0.04 - 1.2 mm
