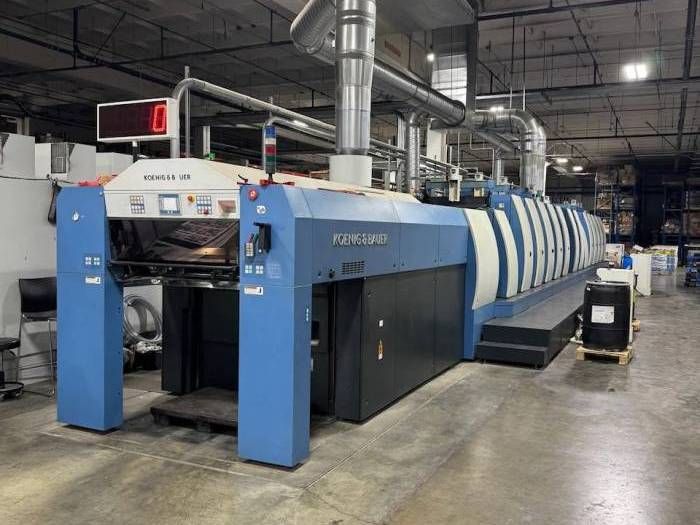

KBA Rapida 106-5 LTT 5 L SW SPC ALV 2 10 106 x 72 cm

Max.Size: 106 x 72 cm (41 x 28 inch)
Current State: In production
Colors: 10
Impress.Count: 98 mio
Extras: Autoplate, Perfector, Digital Controls, Touch-screen Control, Coater, Autosize, Dryer, CIP
Configuration: 5 print units / coating unit / 2 drying units / perfecting unit / 5 printing units / coating unit
Perfecting 5 Coat / Perfect 5 Coat, This machine has the ability to be printing a 5 Coating job and at
the same time be able to make ready the next 5 Coating job simultaneously.

Equipped with the following:
CX package WallScreen for visualization of all press processes ( Board Package )
ErgoTronic ColorControl - ErgoTronic Lab
QualiTronic Quality Pass
ErgoTronic ACR - QualiTronic Professional ( Inline color control )
Flo Clear FS Productivity - Two (2) Harris and Bruno Combi Circulator Pumps – LC2 with Add-on LC1A
Accel – Gen2 Ink Management System
Light-weight paper speed package
Active air-cooling for control cabinets
Changing ink application printing unit
Changing varnish application coating unit (2 piece)
Coating unit with chambered doctor blade system
Drying unit for perfecting press - Perfecting SW8
Extended Delivery 2400mm (ALV2)
Pallet for Nonstop plastic material (2 piece)
Antistatic equipment feeder and delivery, high performance version
Pile entry from the front of the feeder (central)
Frame for concealing pile board in foundation in feeder and delivery
Intercommunication system between infeed and delivery -
Fully-automatic plate change FAPC, incl. pneumatic plate bending device at the gallery
DriveTronic SPC – Simultaneous Plate Change incl. paper stretch compensation ( All plates load at once)
DriveTronic Plate Ident (Auto Register) - High-tech combi-cooling unit “beta.c”, air-cooled with exhaust fan (Technotrans)
Hickey picker - Rider roller chrome, with oscillation
Roller covering for printing with alcohol substitute (UV and normal ink)
CleanTronic Multi – multi-purpose washing system for blankets and impression cylinders & roller washing system inn case of using different types of ink
Cardboard-tube version for blanket and impression cylinder washing system
CleanTronic UV - Harris & Bruno varnish supply and cleaning system for water-based varnish and UV coatings,
with operation via control console, pump output dependent on viscosity (2 piece)
Anilox roller - Additional chambered doctor blade system (2 piece) - Dryer Air Exhaust- EES – Emission Extraction System
Package water-cooling for combi cooling unit, air supply cabinet and UV-dryer (Technotrans)
Booster for water cooling in case of temperatures above 35°C up to 40°C
KBA VariDry IR/HotAir in the drying unit
KBA VariDry IR/HotAir/UV in delivery and extended delivery (ALV2) -
KBA VariDry IR/HotAir/UV in the drying unit
Exchange position for UV intermediate dryer (6 piece)
KBA VariDry UV intermediate dryer (5 piece)
Control module ensuring entire versatility between UV intermediate dryers and UV final dryers
Air supply cabinet for QualiTronic Professional/PDF (perfecting)
Digital speed display
Plate punch, pneumatic (KBA)
