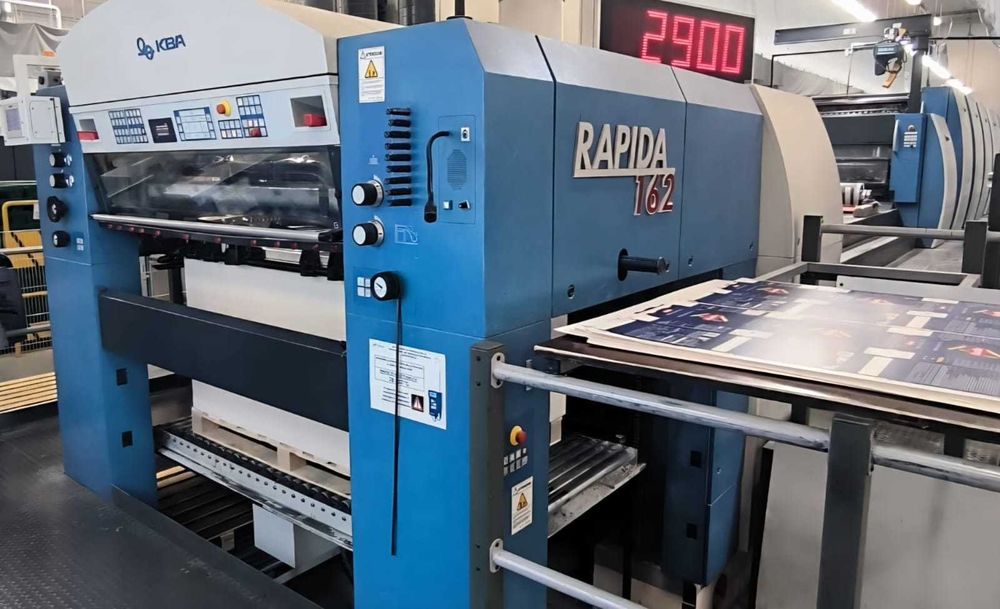

KBA RAPIDA 162-7+L 1120x1620 mm

Max. paper size: 1120x1620 mm
Smallest size: 600x920 mm
Image area: 1110x1620 mm
Plate size: 1245x1630 mm
Speed: 13.000 sh/h
Power consumption: 195 kw
Length: 18350 mm
Width: 4710 mm
Height: 2950 mm
Weight approx.: 131.000 kg
Colors: 7 + L

Densitronic-S spectrophotometer
ACR Video register control
ALV3 - Tripple extended delivery 3900 mm
Press raise 420 mm
Hybride package
Washtronic package for UV interdecks
Field of application: 60 gr/m2 – 1.6 mm
KBA Nonstop Automatic feeder with Knipser logistic system
Kersten high performance antistatic feeder
Dust exhaustIntercom
Inking rollers for conventional inksInking unit temperature control
Technostrans Beta C High tech combi cooling device
Ink blowers for special colours
Washing devices for changing ink types
Hickey Picker
Harris&Bruno coating unit with chambered ductor blade and Anilox roller with UV varnish equipment
Tresu varnish supply- and cleaning system for water based or UV varnish
Nonstop delivery with rollo
ACS Cleaning system
Grafix UV/ IR/ Hot air dryer
2x Grafix UV Interdeck possible to install in 4 position
Special dryer on the delivery mod. G55K-(LH3-H3)-(LH3-H3)-H6-(H6)+3UVF160-CR-W
Cip-Link online
VARIDAMP alcohol dampening
Colortronic (Register, Dampening and Ink Remote System Control)
CX package for cardboard up to 1.6mm
FAPC automatic plate change Antistatic (Kersten)
Ink temperature control water cooled
TECHNOTRANS combi refrigeration and ink temp control
WEKO AP 260 sprayer
Rietschle Air Cabinet
2 Anilox rollers (60 and 80) 2 sets of grinding rollers, one of which is non-rubberised
