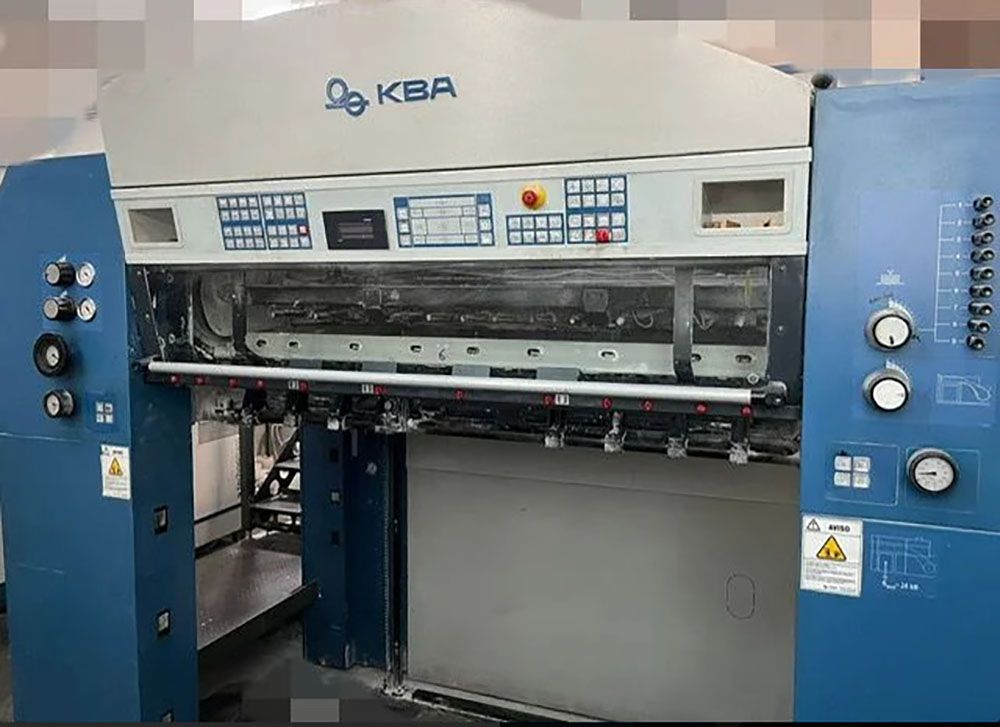

KBA RAPIDA 162A-4 1200x1620 mm

Max. paper size: 1200x1620 mm
Smallest size: 600x920 mm
Image area: 1190x1620 mm
Speed: 12.000 sh/h
Power consumption: 124 kw
Length: 13430 mm
Width: 4710 mm
Height: 2950 mm
Weight approx.: 79200 kg
Colors: 4

Dampening cooling and circulation system
Suction-bel. feed table with 2 suction belts and four-chamber vacuum system
Table surface from stainless anti-static structural sheet metal
Electronically controlled sheet slow-down to ensure optimum sheet arrival speed at the front lays
Format presetting from ErgoTronic console
Automatic motorized pile centering device
Front-edge pile height setting convertible to rear'-edge pile height sensing
Motorized feeder head height adjustment, in case of front-edge pile height sensing automatic height adjustment of the feeder head
Photoelectric front lay control
Double-size impression cylinders and transfer systems
Adjustment or the individual front lays
Pneumatic side guides with optical side guide control, automatic format setting from ErgoTronic console
VARIDAMP alcohol dampening
Colortronic (Register, Dampening and Ink Remote System Control)
ITC Ink temperature control
Automatic blanket, roller and impression-cylinder washing device
Powder sprayer
PWVA Plate change
Ergotronic
Steelplate in feeder
Technotrans refrigeration
Ultrasonic double sheet control
