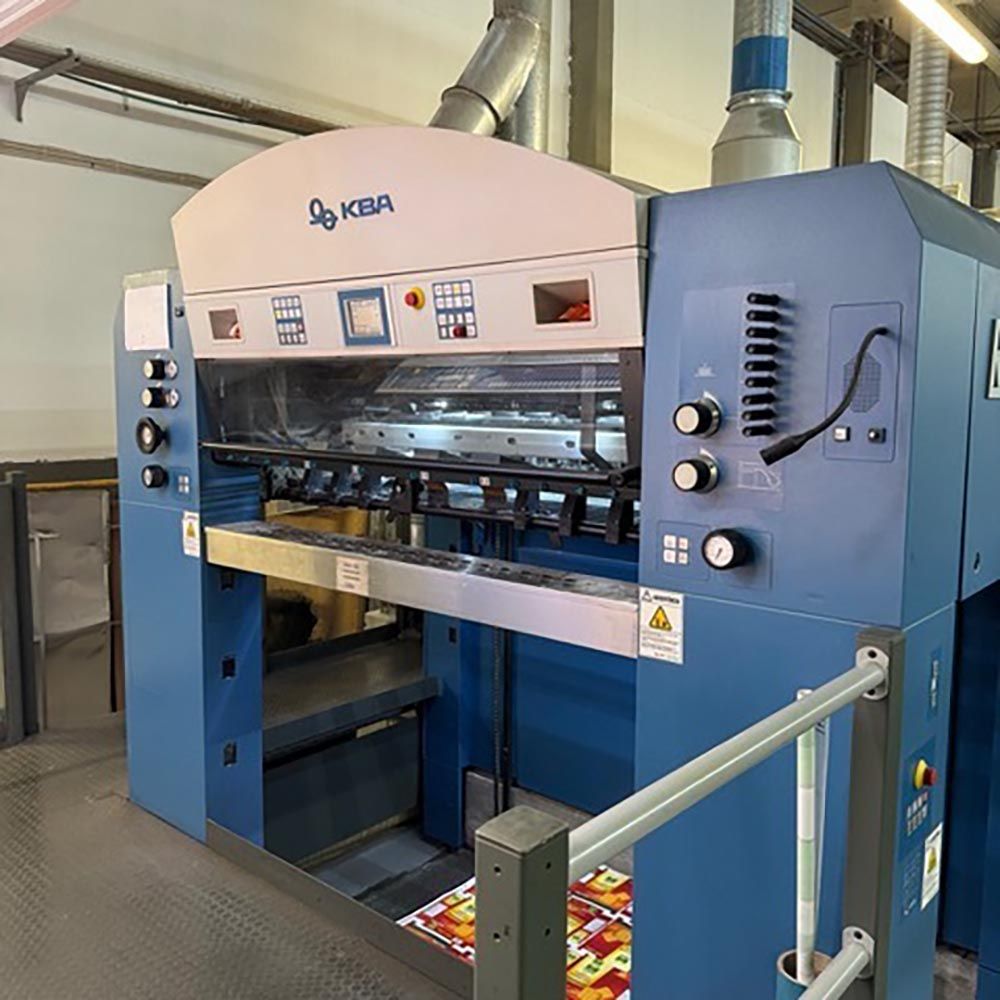

KBA RAPIDA 162A-5+LX 1200x1620 mm

Max. paper size: 1200x1620 mm
Smallest size: 600x920 mm
Speed: 13.000 sh/h
Power consumption: 154 kw
Length: 18070 mm
Width: 4710 mm
Height: 2950 mm
Weight approx.: 69500 kg
Colors: 5

CX package for printing material over 350g/cm2 up to 1.2 mm including:
infeed prepared for cardboard
special guides at the infeed for printing cardboard
tubes with blown air in the printing units for printing cardboard up to 600 g/m2
descending non-stop delivery
varnishing tower with Harris & Bruno closed chamber system
ALV2 - 2.6m extended deliver
refrigeration for the main cabinetmachine raised by 420 mm
intercom between infeed and delivery
ACR - Control - video register control
electro-mechanical double-sheet control at the output
Dust extractor at infeed
Motorised front heel adjustment
Double sheet control with capacitive and optical sensor
Automatic washing system for blankets, impression cylinder and ink rollers
Unwinder for washing cloth
5x additional shaft sets for washing cloth
Hickey picker on all 5 units
Machine preparation for cooling of inking rollers
Cooling of inking rollers with TECHNOTRANS unit, includingpH value indicator
Conductivity indicator
Operation from desk
Aquados mixer
Additional anilox roller for 60/80/90 or 100 lines hoist for changing the anilox roller in the varnish tower submersible plate at the delivery
Weko AP 262 sprayer connected to the colortronic console plate perforator for coating plates
IR/hot air dryer at the extended delivery
VARIDAMP alcohol dampening
Colortronic (Register, Dampening and Ink Remote System Control)
Ergotronic
PWHA Semi automatic plate change
