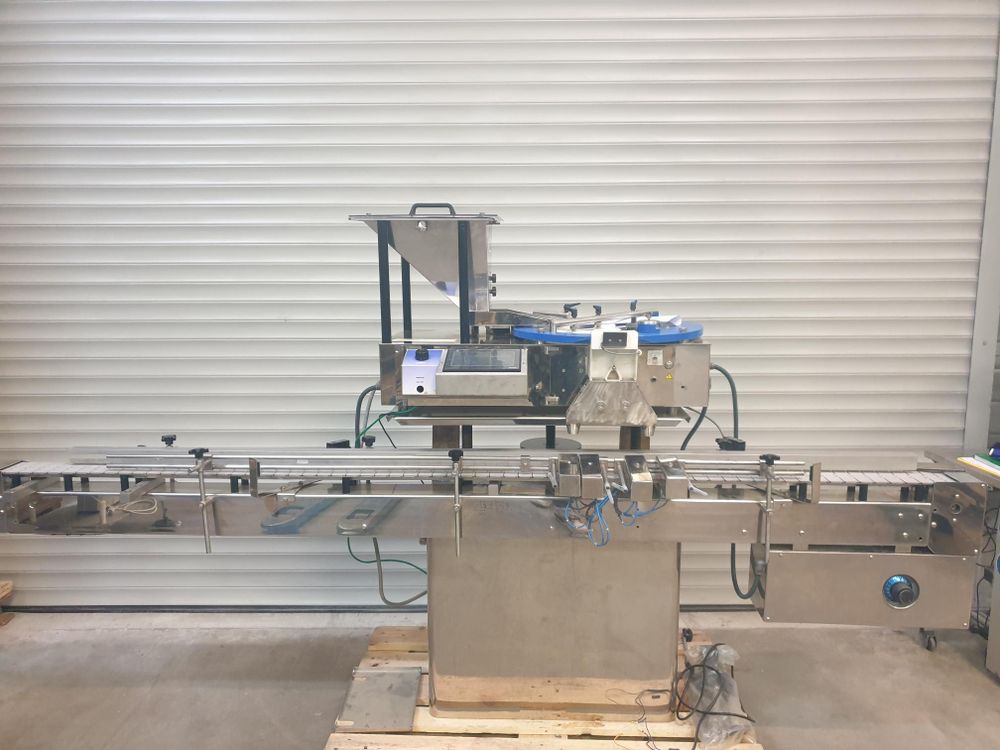

KBW AC 2000 Counter for tablet, capsule and pill

Weight : 288 kg
Dimensions : (L x W x H) 2.75 x 0.90 x 1.45 M

Automatic counting machine for tablets, capsules...
Complete electrical revamp. Installation of a new OMRON PLC with touchscreen.

Equipped with :
- Plastic pallet conveyor width 100 mm - length 1600 mm for transferring container under counting station
- Automatic stop of containers under counting station
- Counting machine with conical hopper for feeding products
- Plate diameter 570 mm
- Electronics for transferring products to counting station
- Product counting station with detection by a photocell
- Product output station by 2 chutes
- Plastic pallet output conveyor width 100 mm - length 800 mm
- Electronic counter with display to establish the number of products desired per container

Mounted on height-adjustable legs

Capacity :
- Tablet : diameter min 5 mm - max 15 mm
- Capsule size from 00 to 5
- Bottle : min 20 mm - max 110 mm diameter / min 30 mm - 200 mm high

Maximum production : 2000 tablets / minute approximately depending on the nature of the product

Electricity : 230 v - 50 hZ
Maximum compressed air pressure : 4 to 7 bars
