Kearney & Trecker 430 TF-20 Vertical 1,500 rpm (24 speeds)

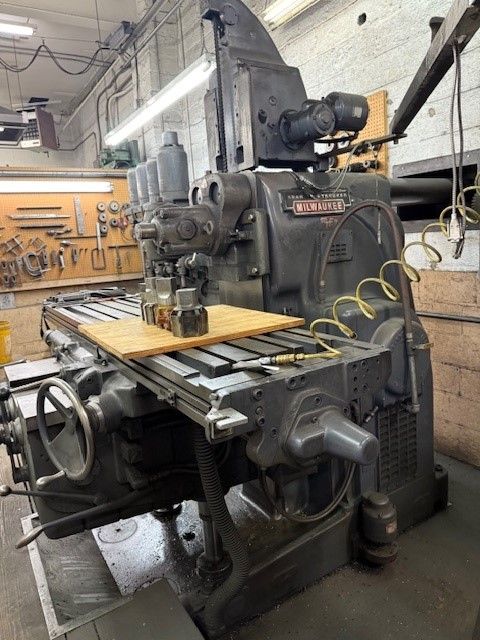

KEARNEY & TRECKER 430 TF-20
1970

Table working surface 19.5" x 88"
Longitudinal travel 42"
Cross travel 14"
Vertical knee travel 21"
Taper in horizontal spindle #50 NST
Taper in vertical spindle #50 NST
Horizontal spindle speeds 15 - 1,500 rpm (24 speeds)
Longitudinal and cross feeds 0.375 - 90 ipm (32 feeds)
Vertical knee feeds 0.125 - 30 ipm (32 feeds)
Rapid traverse rate longitudinal and cross 150 ipm
Rapid traverse rate vertical 50 ipm
Approximate dimensions 64" x 114" x 100" high
Approximate weight 16,500 lbs
Double swivel high speed milling head
Vertical spindle taper #40
Vertical spindle speed 25 - 2000 rpm
Motorized rapid parking attachment
Mono-lever and automatic cycle table control
Wide knee design
Twin screw vertical knee support
Front handwheel for longitudinal travel
Left rear dual handwheels for knee and saddle travel
Automatic backlash eliminator
Self-contained coolant system
Feed and rapid traverse motor 5 hp
Horizontal spindle motor 30 hp
