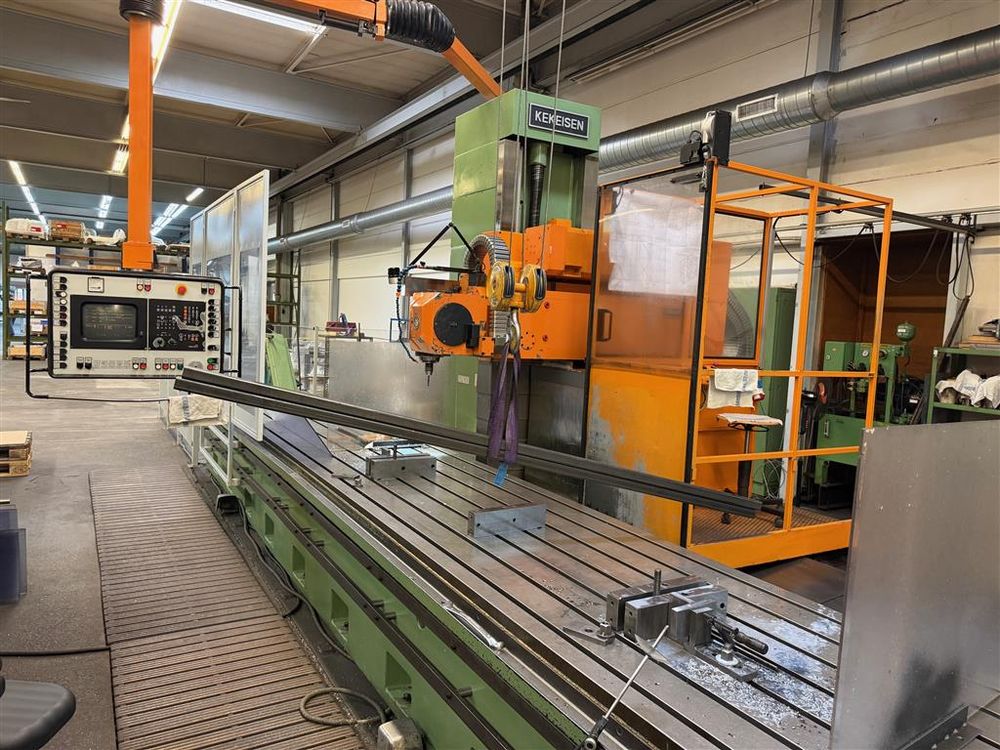

Kekeisen UFF 7000 / 13 2,000 1/min

X travel 7000 mm
Y travel 1200 mm
Z travel 1300 mm
Rapid traverse X/Y/Z 10 m/min
Table size 8,000 x 1,300 mm
Maximum table load 4 t/sqm
Universal head 5x90° plus manual 1°
Tool holder SK 50
Spindle speed 20 - 2,000 1/min
Spindle power 30 kW
Spindle torque 2-stage gearbox, 750 Nm
Control HEIDENHAIN TNC 360
Chip conveyor
Total power requirement 50 kW
Machine footprint 9.0 x 3.8 x 4.6 m
Machine weight 25.0 t
Operator platform
Safety fences monitored
Optional accessories (angle heads, clamps, etc.)
