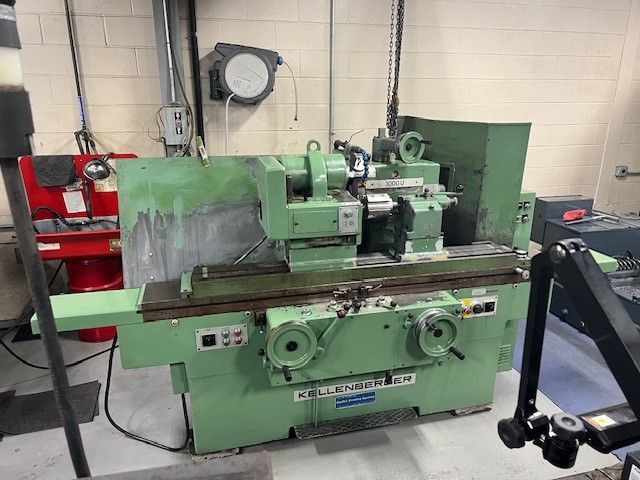

Kellenberger 1000U

Distance between centers: 39.375"
Distance between centers with tailstock overhang: 47.25"
Center height with risers: 9.84"
Swing without risers: 9.8"
Swing with risers: 19.8"
Longitudinal table travel: 51.81"
Table speed (hydraulic): 0.6 – 240 IPM
Table swivel: 9°
Wheel slide movement: 11.25"
Hydraulic rapid wheel slide stroke: 1.58"
Grinding wheel speeds: 1500 / 1700 / 2200 / 3600 RPM
Grinding wheel size (OD): 16" x 2" x 5"
Grinding wheel size (face): 10" x 0.75" x 3"
Workhead spindle speed: 10 – 400 RPM
Workhead taper: #5 MT
Grinding head swivel: 270°
Vertical spindle head movement: 4.98" – 13.78"
Machine dimensions: 106" x 64" x 66"
Machine weight: 6,500 lbs

Full automatic cycle
Hydraulic operation
Single lever control
Variable table traverse
Automatic infeed
Plunge infeed
Rapid wheel advance and retraction
4 HP wheel head motor
Variable speed workhead system
Live and dead spindle capability
ID grinding attachment
ID grinding spindle
Adjustable center height
Factory risers
Coolant system
