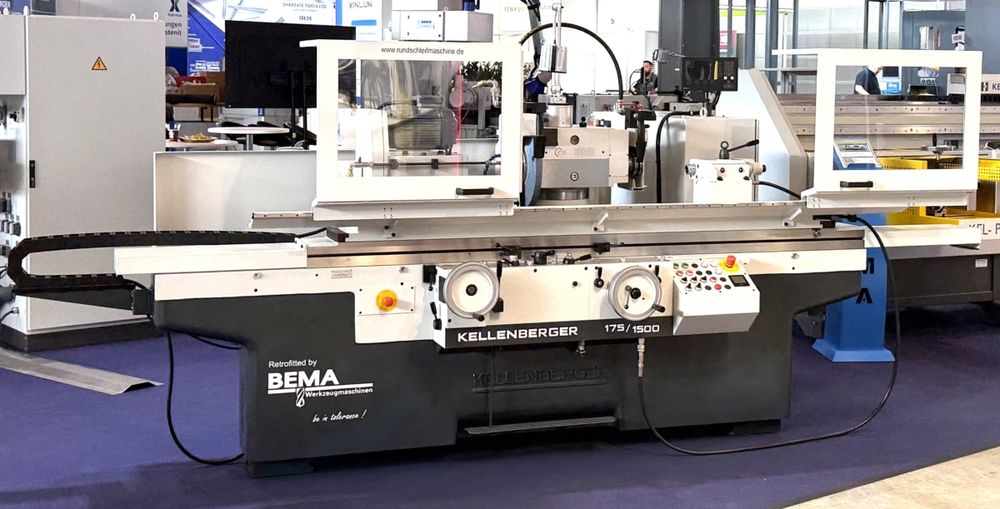

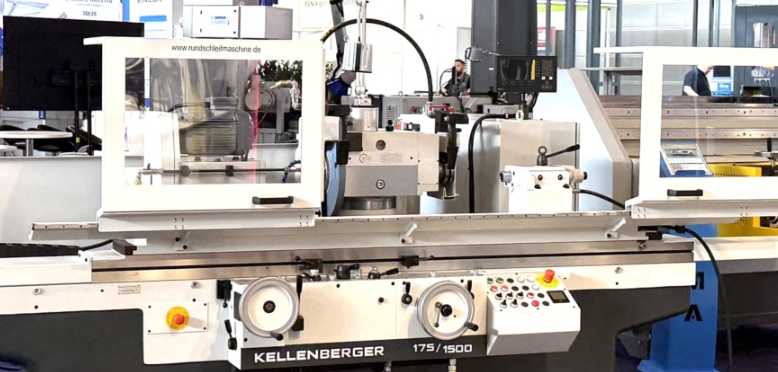

Kellenberger 1500U BEMA AKTUELL

Grinding Diameter: 350 mm
Grinding Length: 1500 mm
Centre Height: 175 mm
Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 50 mm
Bore: 127 mm
Workpiece Spindle Speed: 20 - 400 RPM
Grinding Head Swivel: 360°
Grinding Spindle Head Swivel: ±180°
Grinding Spindle Speed: 1500 / 1700 / 2200 RPM
Longitudinal Table Travel: 1750 mm
Table Speed: 0.02 - 6 m/min
Total Power Requirement: 6.5 kW
Weight: 2.9 t
Machine Dimensions: 5.6 x 2.0 m

Conventional Control
Completely Rebuilt
New Electrical Cabinet
Modern Hydraulic Unit
Modern Workpiece Spindle Head
Modern Tailstock with Fine Adjustment
Modern Control Block
Modern Feed System
Modern Gearbox
Internal Grinding Attachment for 80 mm Diameter Spindles
Grinding Spindle Head Angle Display
Upper Table Grinding Angle Display
Air Lift Upper Table
Sinus Bar
Variable Grinding Spindle Speed 70–100%
Variable Internal Grinding Spindle Speed 70–100%
Optional Separate Internal Grinding Spindle Drive
Cooling System for Internal Grinding Spindle
Variable Internal Grinding Spindle Speed 0–100%
Splash Guard Doors for Z Axis

Optional Workpiece Spindle Head Angle Display
Optional Grinding Spindle Head Angle Display
Optional Upper Table Angle Display
Partial X Axis Enclosure
Special Configurations Available
