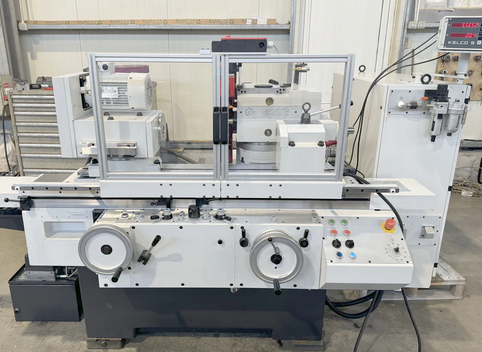

Kellenberger 600 U 175

Centre Height: 175 mm
Distance Between Centres: 600 mm
Grinding Wheel Diameter: 350 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Speeds: 1500 to 3600 RPM, 4 steps
Wheelhead Angular Displacement: 270°
Workpiece Spindle Speeds: 20 to 400 RPM, stepless
Workpiece Spindle Rotatable: 360°
Spindle Taper: 5 CM
Tailstock Taper: 3 CM
Table Angular Displacement: 10°
Table Speed: up to 6 m/min, stepless
Voltage: 50 Hz 3×380 V
External Grinding Wheel Motor: 4 CV
Machine Weight: 2200 kg
Machine Dimensions, L x W x H: 3000 × 1750 × 1600 mm

Features / Equipment
Digital Readout, 2 Axes
Tailstock with Fine Adjustment
Internal Grinding Attachment
Grinding Wheel Guard
Safety Device
Sliding Door
