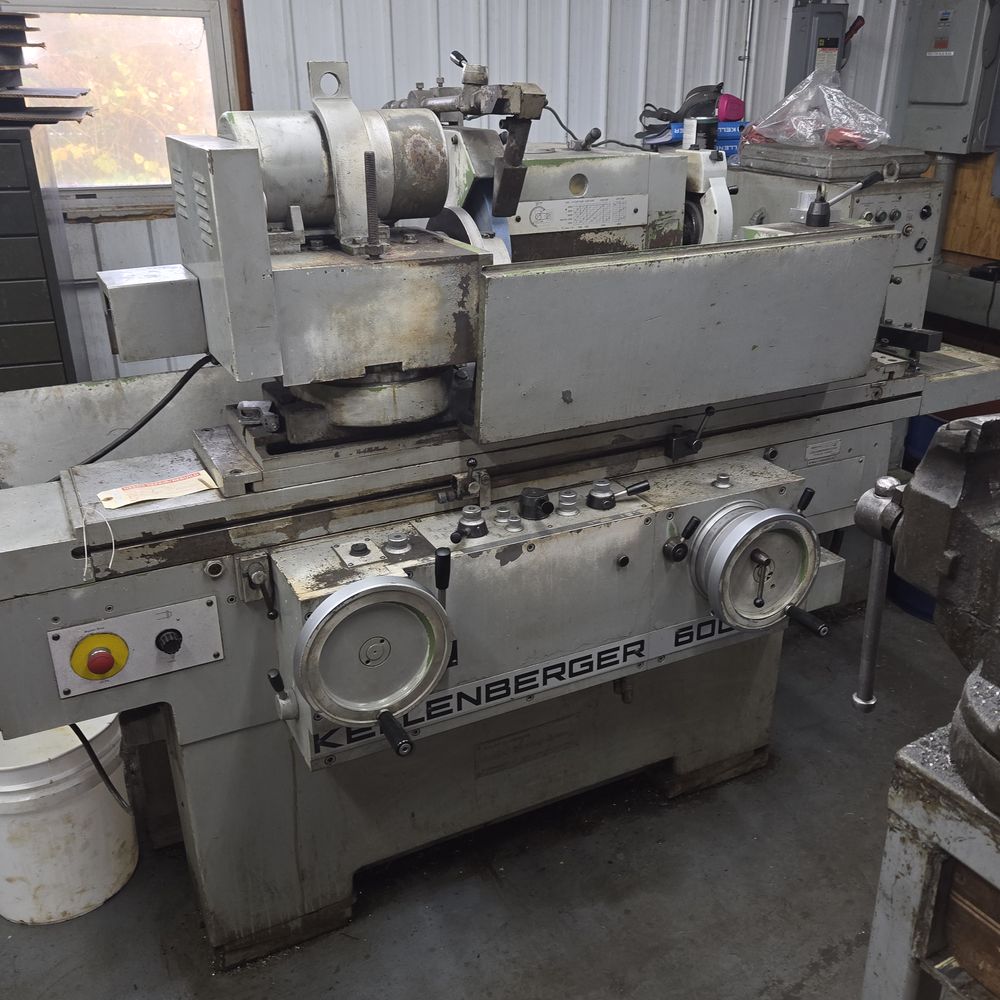

Kellenberger 600 U-175

Swing capacity: 13.8"
Maximum swing with additional risers: 19.8"
Distance between centers (nominal): 23-5/8"
Distance between centers with tailstock overhang: 29-1/2"
Longitudinal table travel: 35-1/2"
Longitudinal table travel per turn of handwheel (coarse): 25/32"
Longitudinal table travel per turn of handwheel (fine): 3/32"
Longitudinal table speed (hydraulic): 0.06 to 18' FPM
Table swivels: 11 degrees
Reversing dwell: 0 to 5 seconds
Grinding wheel infeed, 1 graduation of feed scale: 0.0002"
Grinding wheel automatic feed, maximum: 0.035"
Auto infeed per table reversal: 0.00005" to 0.0012"
Infeed for plunge grinding: 0.00004" to 0.002"
Plunge grinding infeed speed: 10 to 1000 uin/sec
Micrometer stop, 1 graduation: 0.00005"
Transverse movement of wheel slide: 11-1/4"
Hydraulic rapid wheel slide advance/retraction stroke: 1-9/16"
Grinding wheel speeds: 1500, 1700, 2200, 3600 RPM
Grinding wheel for cylindrical grinding: 16" x 2" x 5"
Grinding wheel for surface grinding: 10" x 3/4" x 3"
Swivel of grinding head with locking every 90 degrees: 270 degrees
Workhead infinite variable spindle speeds: 10 - 400 RPM
Workhead swivels: 360 degrees
Inside taper of work spindle: #5MT
Approximate floor space required: 102" x 64" x 66"H
Approximate machine weight: 6,000 lbs
Hydraulic operation single lever control
Hydraulic operation infinitely variable table traverse
Hydraulic operation automatic infeed
Hydraulic operation plunge infeed
Hydraulic operation rapid wheel advance & retraction
Sparkout timer
Dual left-hand & right-hand wheel mounting
Swing around internal grinding attachment
Internal grinding spindle
16" O.D. wheel
Face grinding assembly (R.H. wheel)
4-jaw chuck & back plate with adaptor
Wheel dresser
Standard workhead with dual live & dead workhead spindle
4 HP wheelhead motor
Coolant system
Machine wired for 3/60/440-460 volts
