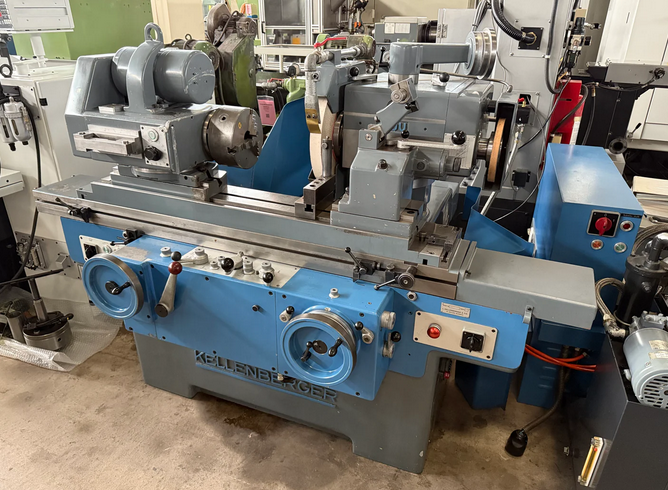

Kellenberger 600 U

Centre height 125 mm
Distance between centres 600 mm
Grinding wheel diameter 350 mm
Grinding wheel width 50 mm
Grinding wheel bore 127 mm
Grinding wheel speeds 1500–3600 rpm
Number of grinding wheel speed steps 4
Angular displacement 270°
Workpiece spindle speed 20–400 rpm
Workpiece spindle rotation 360°
Spindle taper 3 CM
Tailstock taper 3 CM
Table angular displacement 10°
Table speed up to 6 m/min
Voltage 380 V
External grinding wheel motor 4 CV
Machine weight about 2200 kg
Machine length 2200 mm
Machine width 1750 mm
Machine height 1600 mm

Features
Tool cabinet
