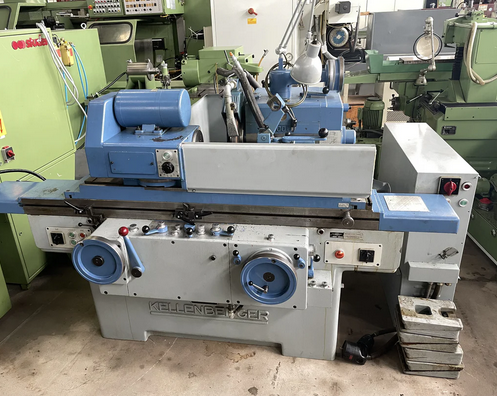

Kellenberger 600 U

Grinding Wheel Diameter: 350 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Wheel Speed: 1,500 – 3,600 rpm
Number of Speeds: 4

Workhead Speed: 20 – 400 rpm
Workhead Rotation: 360°

Center Height: 125 mm
Distance Between Centers: 600 mm

Spindle Taper: 3 CM
Tailstock Taper: 3 CM
Wheel Head Rotation: 270°
Table Swivel: 10°
Table Speed: up to 6 m/min

Grinding Motor Power: 4 CV

Voltage: 380 V

Machine Dimensions: 2200 x 1750 x 1600 mm
Machine Weight: 2,200 kg

Coolant System
Lamp
Tailstock
