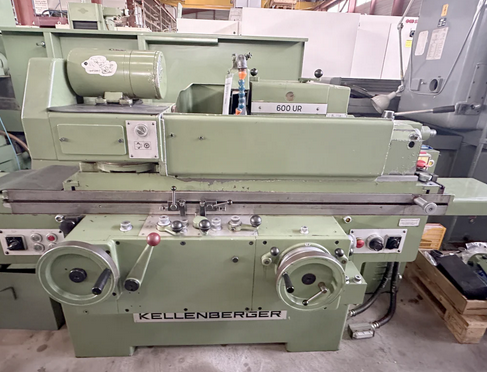

Kellenberger 600 UR

Centre Height: 125 mm
Distance Between Centres: 600 mm
Grinding Wheel Diameter: 350 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Speeds: 1500–3600 RPM
Grinding Wheel Speed Steps: 4
Wheel Head Angular Adjustment: 270°
Workpiece Spindle Speed: 20–400 RPM
Workpiece Spindle: Stepless
Workpiece Spindle Rotation: 360°
Spindle Taper: 5 CM
Tailstock Taper: 3 CM
Table Angular Adjustment: 10°
Table Speed: up to 6 m/min
Voltage: 380 V / 50 Hz / 3 Phase
Grinding Wheel Motor: 4.0 CV
Tailstock with Fine Adjustment
Coolant System
Grinding Wheel with Flange
Safety Device
Weight: 2200 kg
Dimensions: 3000 x 1750 x 1600 mm
