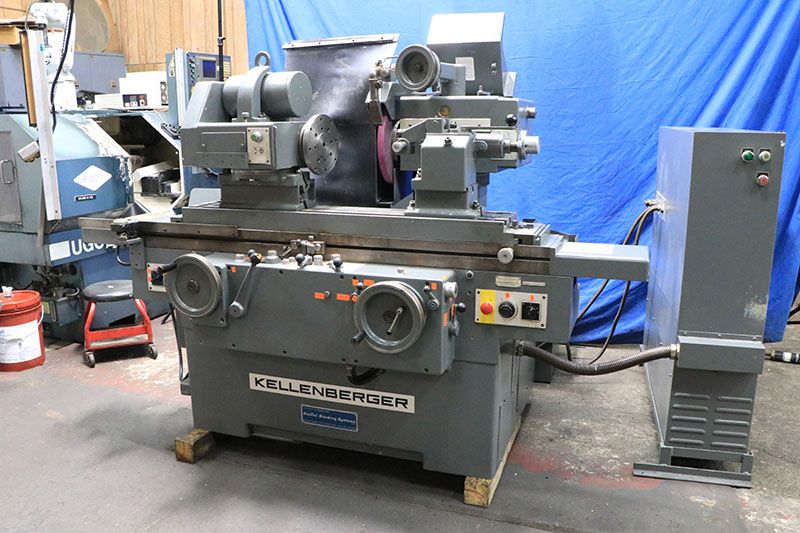

Kellenberger 600U

KELLENBERGER 600U
1982

Max Swing with Risers: 17.8"
Distance Between Centers (Nominal): 23-5/8"
Distance Between Centers with Tailstock Overhang: 29-1/2"
Longitudinal Table Travel: 35-7/16"
Table Travel per Handwheel Turn (Coarse): 0.8"
Table Travel per Handwheel Turn (Fine): 0.1"
Hydraulic Table Speed: 0 to 20 FPM
Table Swivel: 11°
Reversing Dwell Time: 0 to 5 seconds
Feed Scale Graduation: 0.0002"
Hydraulic Infeed Range: 0 to 0.037"
Auto Infeed per Table Reversal: 0.00004" to 1.18"
Plunge Grinding Infeed Speed: 0.00001" to 0.0001"/s
Micrometer Stop Graduation: 0.00005"
Transverse Movement of Wheel Slide: 8-21/32"
Infeed per Handwheel Rev (Coarse): 0.3"
Infeed per Handwheel Rev (Fine): 0.04"
Hydraulic Rapid Wheel Slide Stroke: 1-9/16"
Grinding Wheel Speeds: 1500 / 1700 / 2200 RPM
OD Grinding Wheel Size: 16" x 2" x 5"
Surface Grinding Wheel Size: 9" x 1/2" x 3"
Grinding Head Swivel Range: 270°
Workhead Spindle Speed Range: 6 to 600 RPM
Workhead Swivel Range: 360°
Workhead Spindle Taper: #5MT
Tailstock Spindle Taper: #4MT
Tailstock Spindle Stroke: 1-3/16"
Floor Space Required: 102" x 64" x 66"H
Machine Weight: 6,000 lbs
Hydraulic Operation
Single Lever Control
Infinitely Variable Table Traverse
Automatic Infeed
Plunge Infeed
Rapid Wheel Advance & Retraction
Sparkout Timer
4" Factory Risers
Adjustable Wheelhead Rise & Fall Mechanism
Swing-Around Internal Grinding Attachment
ID Spindle
Dual Live & Dead Workhead Spindle
Electronic Variable Speed Drive
4 HP Wheelhead Motor
Coolant Tank & Pump
Levelling Pads
Swing-Back Diamond Dresser
Draw Bar
Face Plate
Trav-a-Dial Analog Indicator
Power: 3/60/480 Volts
