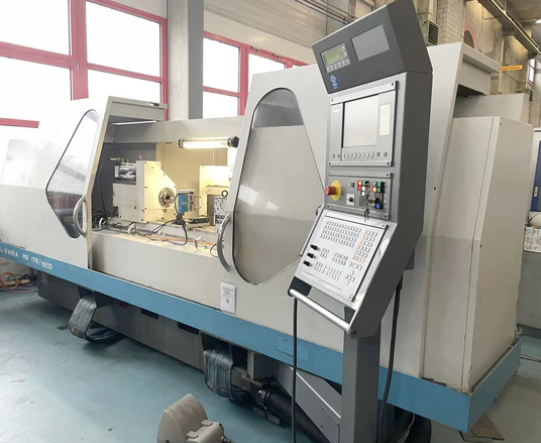

Kellenberger KEL-VARIA R175 x 1500

Z axis travel 1650 mm
Max travel 320 mm
Feed range 7500 mm/min
Rapid motion 15 m/min
Max table angular displacement 7°

B axis resolution 2.5°
Rotatable grinding spindle head +30° / -210°
C axis

Control KELCO 120
Paper filtration system
Coolant filter system
Measuring device MOVOMATIC
Feeler Renishaw LP2H
Lamp
Status light
Grinding-wheel flange extractor
Electronic hand-held remote control
MPM dynamic balancing system

Centre height 175 mm
Distance between centres 1500 mm
Workpiece weight on centres max 150 kg

Grinding wheel diameter 500 mm
Grinding wheel width 80 mm
Grinding wheel bore 203 mm
Grinding wheel diameter 400 mm
Grinding wheel width 63 mm
Grinding wheel bore 127 mm
Peripheral speed 45 m/s

Grinding wheel speeds from 1000 rpm
Grinding wheel speeds up to 2150 rpm

Workpiece spindle head swivelling range -10° / +100°
Workpiece spindle speeds from 8 rpm
Workpiece spindle speeds up to 800 rpm
Internal mounting cone 5 CM
External short tapered mount DIN 55026 Gr. 5
Permitted load capacity 160 Nm

Tailstock taper 4 CM
Tailstock barrel travel 50 mm

Air connection 6 bar
Voltage 3×400 V
Grinding spindle motor 7.5 kW
Workpiece spindle motor 2 kW
Machine weight approx 6000 kg
Machine length 4700 mm
Machine width 2300 mm
Machine height 2000 mm
