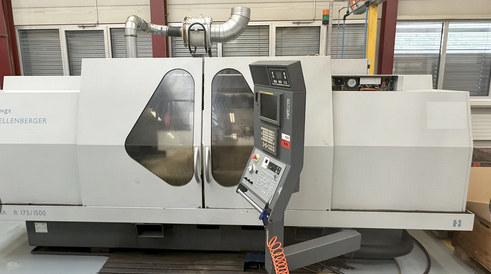

Kellenberger KEL-VARIA R175 x 1500

Z axis travel 1650 mm
B axis swiveling range +30° / -210°
B axis resolution 2.5°
GE FANUC Series 18i-T control
Coolant system
Paper filtration system
MARPOSS touch probe
Center height 175 mm
Distance between centers 1500 mm
Workpiece weight 150 kg
Grinding wheel diameter 500 mm
Grinding wheel width 80 mm
Grinding wheel bore 203 mm
Grinding wheel diameter 400 mm
Grinding wheel width 63 mm
Grinding wheel bore 127 mm
Grinding wheel speed 1000–2150 rpm
Peripheral speed 45 m/s
Grinding spindle motor 7.5 kW
Workpiece spindle speed 8–800 rpm
Workpiece spindle motor 2 kW
Workpiece spindle swiveling range -10° to +100°
Feedrate 7500 mm/min
Rapid traverse 15 m/min
Max wheel travel 320 mm
Table angular displacement 7°
Tailstock taper 4 CM
Tailstock stroke 50 mm
Air requirement 6 bar
Power supply 400 V 3-phase 50 Hz
Machine weight 6000 kg
Machine dimensions 4700 x 2300 x 2000 mm
Set of grinding wheels
Rotary center
Set of centers
Set of workpiece drivers
Set of throat gauges
Lamp
2 tool cabinets
Tailstock with fine adjustment
Oil mist extractor
Collet spindle nose
