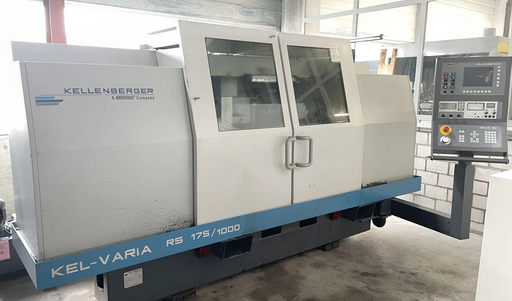

Kellenberger KEL-VARIA RS 175 / 1000

X-axis travel 320 mm
Z-axis travel 1150 mm
Rapid feed rate 10 m/min
B-axis grinding spindle head rotation 240°
B-axis indexing resolution 0.1°
Control KELCO 80
Coolant system
Touch probe MARPOSS
Measuring head MARPOSS
Positionar Passiv
Center height 175 mm
Distance between centers 1000 mm
Maximum grinding diameter 349 mm
Workpiece weight between centers 150 kg
Grinding wheel speed range 1500–1800 rpm
Grinding wheel peripheral speed 32 m/s
Grinding wheel diameter 500 mm
Grinding wheel width 80 mm
Grinding wheel bore 127 mm
Grinding spindle motor power 7.5 kW
Workpiece spindle speed range 5–500 rpm
Workpiece spindle taper 5 CM
Workpiece spindle head rotation -30° to +120°
Tailstock taper 4 CM
Tailstock spindle stroke 50 mm
Table speed up to 8 m/min
Maximum table swivel angle 9°
Air supply 4 bar
Operating voltage 380 V / 50 Hz / 3-phase
Workpiece spindle motor power 3 kW
Machine length 3600 mm
Machine width 2000 mm
Machine weight approx. 6000 kg
Grinding wheel with flange
Machine lamp
Tailstock with fine adjustment
