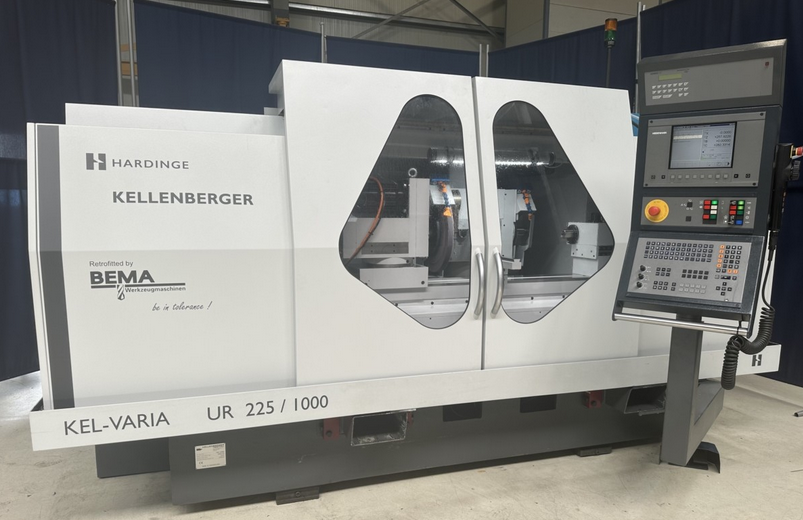

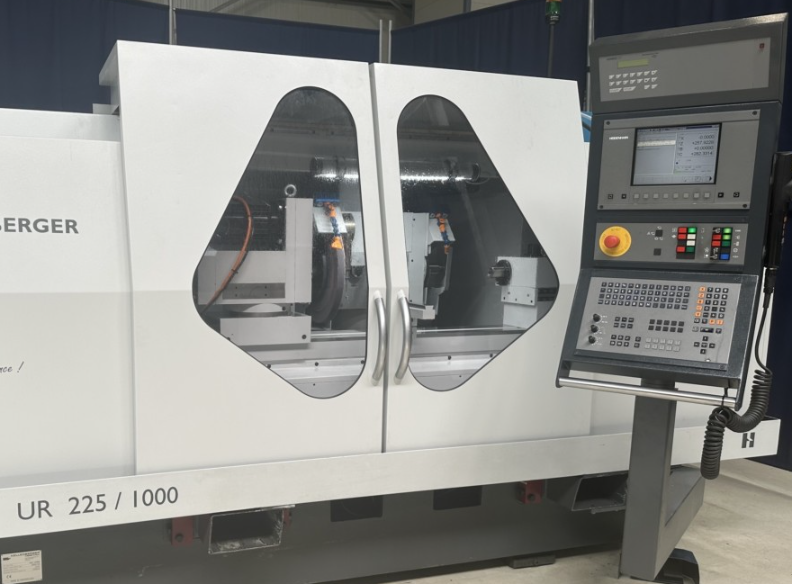

Kellenberger KEL-VARIA UR 225-1000 Kelco120

Grinding Diameter = 450 mm
Grinding Length = 1,000 mm
Centre Height = 225 mm
Grinding Wheel Left = 400 x 63 x 127 mm
Grinding Wheel Right = 300 x 40 x 127 mm
Internal Grinding Unit = Ø120 mm for HF spindles
CNC Control = KELCO 120
C-Axis = For non-circular grinding, Kel-Poly
B-Axis = CNC-controlled
KELCO 120 Speed = Constant 35 m/s or 45 m/s
High-Frequency Internal Grinding Spindle
Operating Unit for MFV and MFZ Spindles
Hydraulic Quill Retraction for Tailstock
Spring-Loaded Quill Insert
Top Table Cooling
Standard Workpiece Headstock MK 5 DIN 55026 size 5"
Micro-Adjustment for Standard Workhead
Dressing Device on Lower Table
Active Longitudinal Positioning = KELPOS, MARPOSS, mounted on grinding head
Tool Measuring System = KELSET, MARPOSS
MARPOSS Gate Sensor
Measuring Control = MARPOSS Minialsar prepared
Paper Belt Filter
Major Maintenance
New Table Geometry
Partial Painting of the Interior
