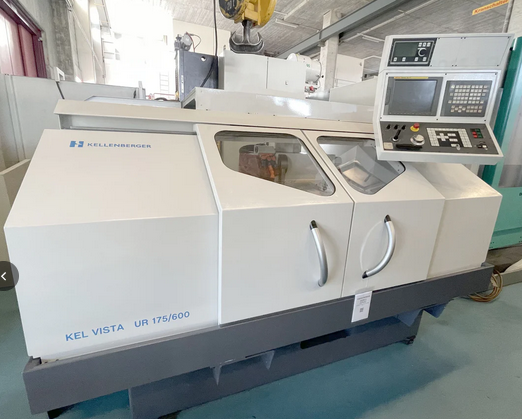

Kellenberger KEL-VISTA UR 175X600

Z Axis Travel: 750 mm
X Axis Travel: 320 mm
Rapid Feed: 12 m/min
B Axis: +10 / -210 °
Workpiece Spindle Head Rotation: +100 / -10 °
GE FANUC Series 21i-T CNC Control
Coolant System
Coolant Through Spindle
Paper Filtration System
MARPOSS Probe
MOVOMATIC Measuring Control
Automatic Length Positioning
Internal Grinding Attachment
Balancing Device
RS-232 Interface
Centre Height: 175 mm
Distance Between Centres: 800 mm
Grinding Length: 600 mm
Maximum Workpiece Diameter: 349 mm
Maximum Workpiece Weight: 100 kg
Grinding Wheel Speed: 875 – 1900 rpm
Grinding Spindle Motor: 5 kW
Work Spindle Speed: 8 – 800 rpm
Work Spindle Taper: 5 CM
Tailstock Taper: 4 CM
Tailstock Travel: 50 mm
Air Pressure Requirement: 6 bar
Voltage: 400 V
Grinding Wheel Diameter Left: 400 mm
Grinding Wheel Width Left: 80 mm
Grinding Wheel Bore Left: 127 mm
Grinding Wheel Diameter Right: 300 mm
Grinding Wheel Width Right: 40 mm
Grinding Wheel Bore Right: 127 mm
Internal Grinding Spindle Speed: up to 42000 rpm
Machine Weight: 3000 kg
Machine Length: 3200 mm
Machine Width: 1700 mm
Machine Height: 2000 mm
