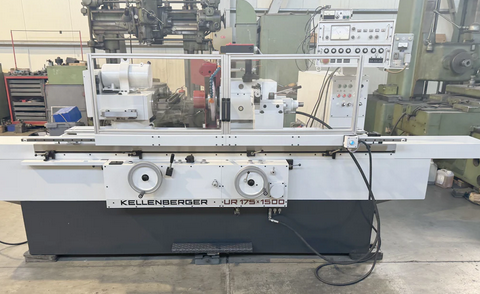

Kellenberger UR 175 x 1500

Center height: 175 mm
Distance between centers: 1500 mm
Grinding diameter: 340 mm
Grinding length: 1500 mm

Grinding wheel size: 400 x 50 x 127 mm
Grinding wheel speed: 1500 – 3600 rpm
Workpiece spindle speed: 20 – 400 rpm

Table speed: up to 6 m/min

Spindle taper: CM3
Tailstock taper: CM3

Angular displacement table: 10°
Workpiece head rotation: 360°
Grinding head rotation: 270°

Voltage: 380 V 3 phase
Grinding wheel motor: 4 hp

Magnetic chuck diameter: 230 mm

Tailstock with fine adjustment
Internal grinding attachment
Measuring control
Dressing device
Grinding wheel with flange
Lamp
Steady rest

Machine dimensions: 3000 x 1750 x 1600 mm
Weight: 2200 kg
