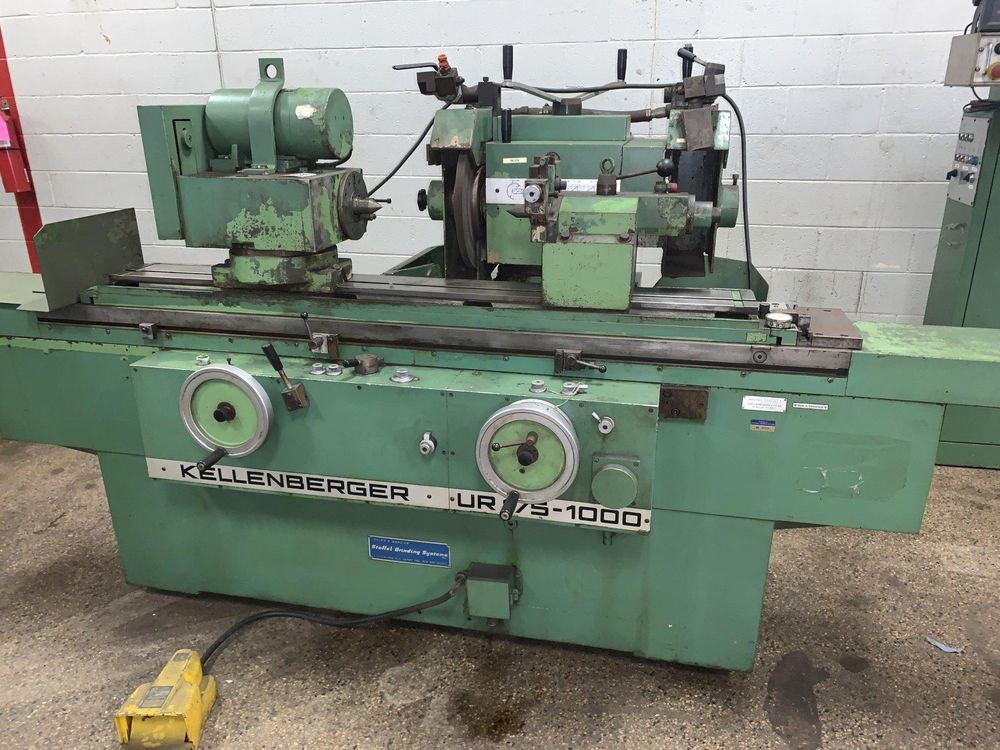

Kellenberger UR175.1000

Distance between centers 39-3/8 in
Height of centers 6-57/64 in
Max swing over table 13-25/32 in
Max table travel 43.25 in
Traverse per rev of handwheel coarse/fine 0.79/0.097 in
Traverse speeds variable 0.06–19 in
Min movement to reverse table 1/16 in
Max table swivel 9°
Dwell reversal variable 0–5 sec
Max wheelslide travel 10-5/8 in
Rapid advance and withdrawal 0.16/0.02 in
Sparking 0–99 sec or strokes
Wheelhead grinding wheel 16 x 2.5 x 5 in
Grinding wheel for right hand spindle end 9 x 0.75 x 3 in
Spindle speeds 1530/1750/2040/2450 rpm
Workhead swivel 360°
Workhead speeds variable 20–400
Workhead taper MT5
Tailstock taper MT3
Quill retraction 1-3/16 in
Wheelhead motor 3000 rpm, 10 HP
Workhead motor 150–3000 rpm, 3 HP
Floor space required 157 x 80 in
Machine weight 6900 lbs
