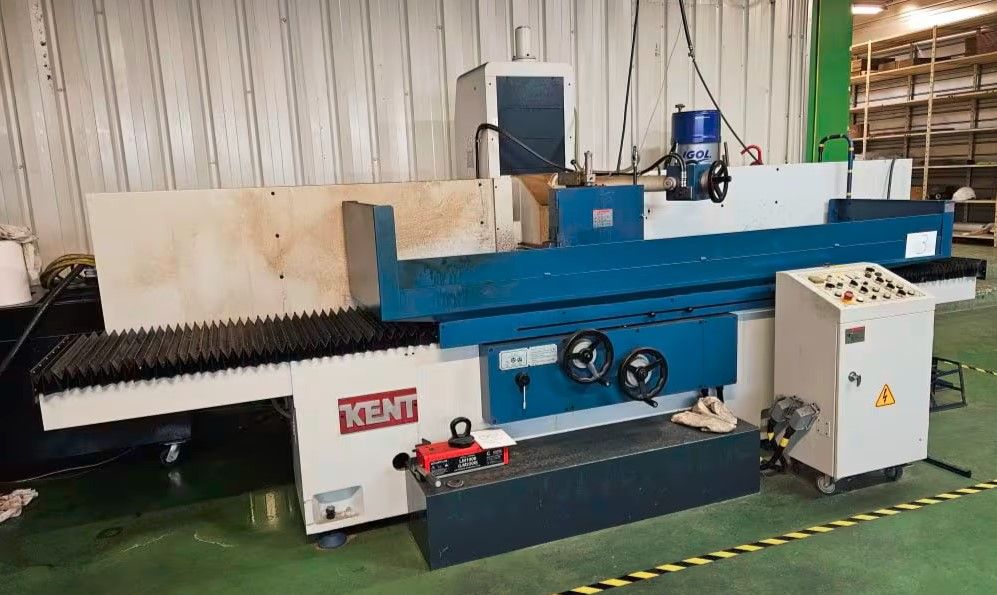

Kent KGS 615 AHD

KGS 615 AHD
Year of manufacture: 2015

Table clamping area: 1500 x 600 mm
Max. table load: 1300 kg
Longitudinal table travel: 1600 mm
Table grooves (number/width): 3/16 mm
Table feed: 7 – 25 mm/mm
Min./Max. Distance between spindle nose and table: max. 600 mm
Vertical handwheel pitch: 0.002 mm
Vertical handwheel revolution: 0.5 mm
Automatic grinding feed: 0.002 – 0.02 mm
Vertical rapid traverse (Y-axis): 230 mm/min
Cross travel: 660 mm
Cross feed per stroke: 0.1 – 12 mm
Cross rapid traverse: 1250 mm/min
Cross handwheel pitch: 0.02 mm
Cross handwheel revolution: 5 mm
Grinding spindle motor: 7.5 kW
Grinding spindle speed: 1450 rpm
Grinding wheel: 355 x 50 x 127 mm
Hydraulic motor: 3.7 kW
Weight: 6250 kg
Dimensions: 5810 × 2545 × 2445 mm
