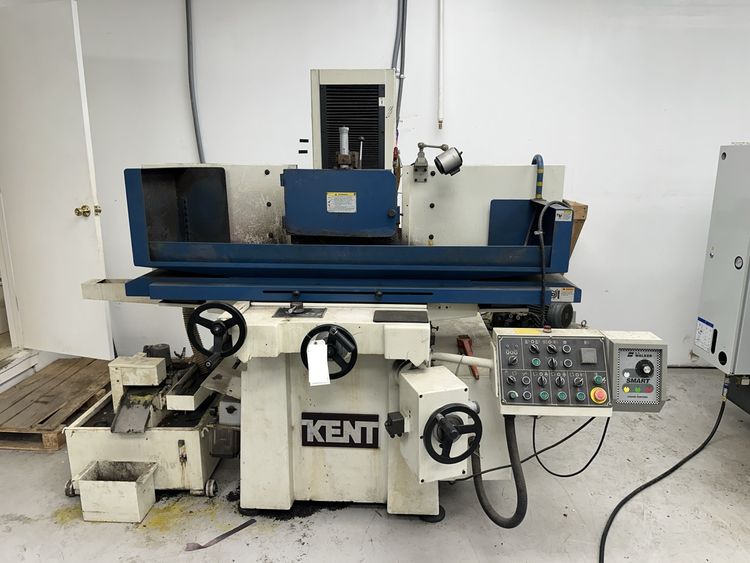

Kent KGS-63AHD

Grinding Capacity 12″ × 24″
Maximum Table Travel X-axis 26.7″
Crossfeed Travel Y-axis 13.5″
Distance from Table to Spindle Center ~20″
Longitudinal Feed Hydraulic, automatic/manual selectable
Crossfeed Automatic and manual (0.02–0.2 mm/stroke adjustable)
Vertical Feed Z Motorized elevation with fine handwheel feed
Spindle Motor 5 HP
Spindle Speed 1,750 RPM
Spindle Type Precision cartridge with preloaded angular contact bearings
Grinding Wheel Size Ø14″ × 1.5″ × 5″
Table Speed 16–82 FPM (hydraulic variable)
Hydraulic Pump Motor 2 HP
Coolant Pump Motor 1/8 HP
Machine Weight ~4,400 LBS
Floor Space Required 90″ × 70″ × 75″
Electrical 230V / 3-phase
