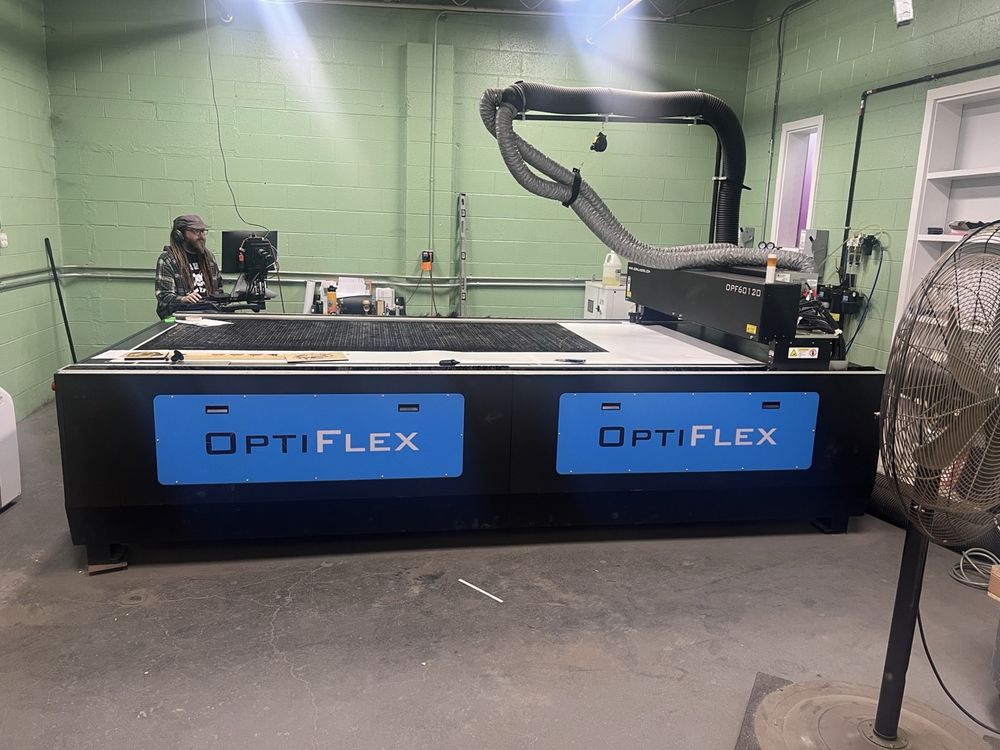

Kern OPTIFLEX OPF60120 KT500 CNC Controller

Machine Type: CNC CO2 Laser Cutting and Engraving System
Manufacturer: Kern Laser Systems
Model: OptiFlex OPF60120
Machine Designation: 60120-KT500 OPF
Laser Source: Kern LightWAVE KT500
Laser Power: 500 W
Typical Peak Power: At least 1,200 W
Laser Wavelength: 10.6 μm
Working Area: 60" × 120"
Working Area: 1,524 × 3,048 mm
Controlled Axes: 3
Material Clearance: Approximately 2"–3"
Positioning Accuracy: ±0.002"
Repeatability: ±0.0005"
HyperDual Servo Motion System
Rack-and-Pinion Drive System
Dual Y-Axis Servo Motors
Vacuum Cutting Table
Maximum Table Load: 2,205 lb / 1,000 kg
Laser Classification: Class 4 CO2 Laser
KCAM Laser Cutting and Engraving Software
Closed-Loop Water Chiller
Large-Format Flat-Sheet Processing
Suitable for Acrylic
Suitable for Wood
Suitable for MDF
Suitable for Plastics
Suitable for Rubber
Suitable for Foam
Suitable for Textiles
Suitable for Leather
Suitable for Paper
Suitable for Cardboard
Suitable for Select Thin Metals
Electrical Supply: 230V Single Phase / 230V Three Phase / 480V Three Phase
Machine Width: 82" / 2,083 mm
Machine Length: 157" / 3,988 mm
Machine Height: 53" / 1,346 mm
Machine Weight: 5,500 lb / 2,495 kg
