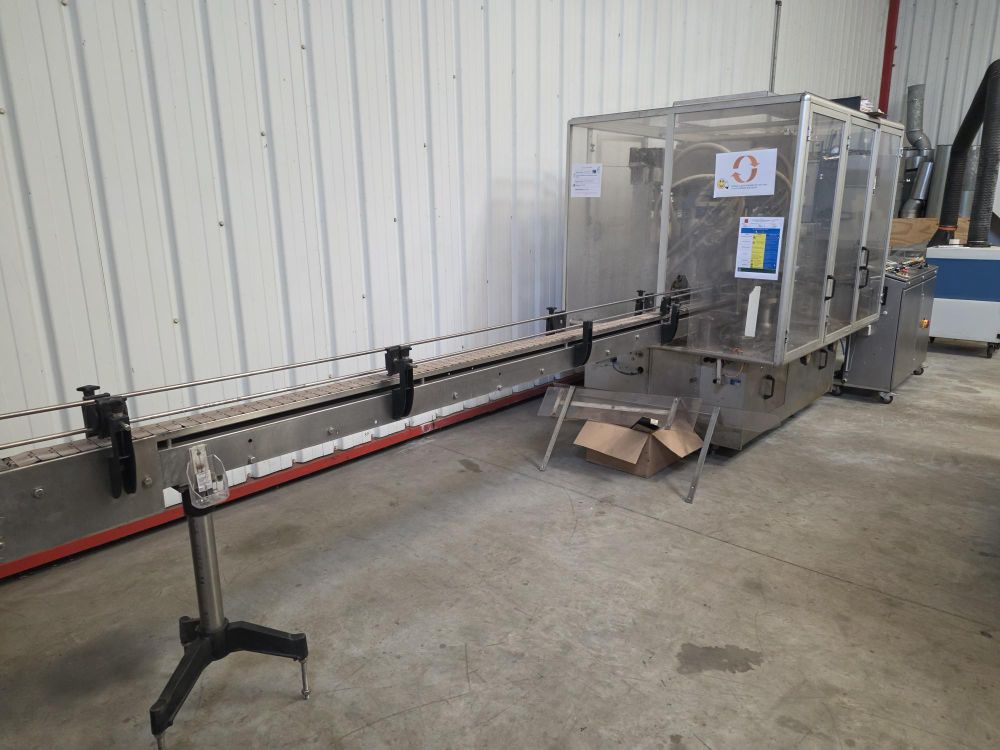

KFVG 4211 Filler rotary filling/screwing/labeling machine

Weight : 1100 kg
Dimensions :
(L x W x H) 7.00 x 1.90 x 1.90 M
Plastic slat-chain bottle infeed conveyor (85 mm wide, 4100 mm long).
4 stainless steel filling nozzles (22 mm diameter).
4 filling pumps (250 ml capacity each).
Pneumatic anti-drip system.
Clean-in-Place (CIP) system for filling nozzles.
8-pocket transfer plate for moving bottles to the cap placement and capping stations.
Bottle presence detection station.
Counter-clockwise vibrating bowl feeder for caps.
PVC belt conveyor for cap transfer (840 mm long, 60 mm wide).
Positive cap pick-up station.
Capping station.
Cap presence detection station.
Rejection chute for defective bottles.
Discharge conveyor (2200 mm long).
Separate stainless steel power cabinet on casters.
Main drive via variable-speed motor.
Safety guarding/enclosures.
Stainless steel frame.

Current tooling:
Round bottle (50 mm diameter).
Cap (27 mm diameter, 14 mm height).

Capacity:
Bottle dimensions:
Max. diameter: 65 mm.
Max. height: 250 mm.

Max. hourly output: Approx. 3,000 to 3,600 bottles, depending on product type and bottle shape.
Motor power: 1.5 kW
Maximum compressed air pressure: 5 bar
Control cabinet dimensions: Length 0.90 m - width 0.34 m - height 0.98 m
