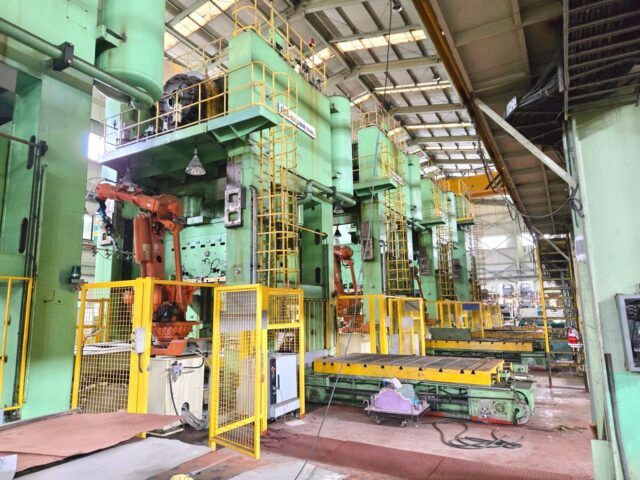

KIA ES2-800-500-400 800 tons

Press capacity: 800 tons
Stroke: 650 mm
Die height: 1,300 mm
Slide adjustment: 600 mm
Speed: 9–24 SPM
Slide size: 3,000 × 1,800 mm
Bolster size: 3,000 × 1,800 mm

Press capacity: 500 tons
Stroke: 650 mm
Die height: 1,300 mm
Slide adjustment: 600 mm
Speed: 9–24 SPM
Slide size: 3,000 × 1,800 mm
Bolster size: 3,000 × 1,800 mm

Press capacity: 400 tons
Stroke: 650 mm
Die height: 1,300 mm
Slide adjustment: 600 mm
Speed: 9–24 SPM
Slide size: 3,000 × 1,800 mm
Bolster size: 3,000 × 1,800 mm

Link drive
Plunger guided
Double moving bolster
2-point suspension
Complete with robots
Air required: 5.5 kg/cm2
3-phase power supply
