Kiefel Coex 5 Film blowing machine

Number of layers 5
Film structure A( int) - B ( HV Int) -C (Barrier ) - D (HV -Ext) -E ( Ext)
Film Width 2000
Output (Kg/h) 500

Extruder 1 Layer ref: A
Screw diam 1 70 mm -29D
Description 1 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser Plast Control - Motor 89 KW

Extruder 2 Layer ref: B
Screw diam 2 50 mm-25D
Description 2 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric doser Plast Control -motor 34 KW

Extruder 3 Layer ref: C
Screw diam 3 50 mm-25D
Description 3 5 zone screw for EVOH, PA , LLDPE-MDPE- Mix , HV -Gravimetric doser Plast Control - Motor 34 KW

Extruder 4 Layer ref: D
Screw diam 4 50 mm - 25 D
Description 4 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric doser Plast Control -motor 34 KW

Extruder 5 Layer ref: E
Screw diam 5 80 mm- 25D
Description 5 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser Plast Control - Motor 89 KW

Head description Kiefel FSBK 500 with IBC
Die diam (mm) 500
Thickness controll system yes automatic -Cooling ring Plast Control- Measuring system C- Scan Capacitive system

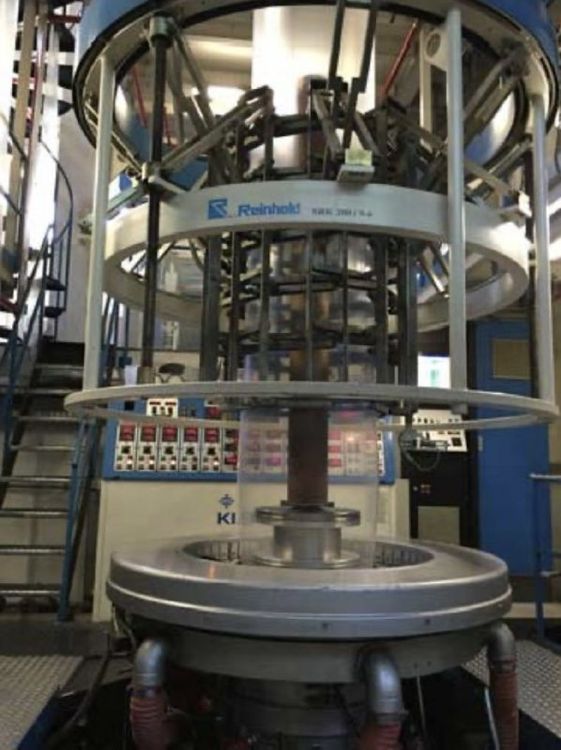

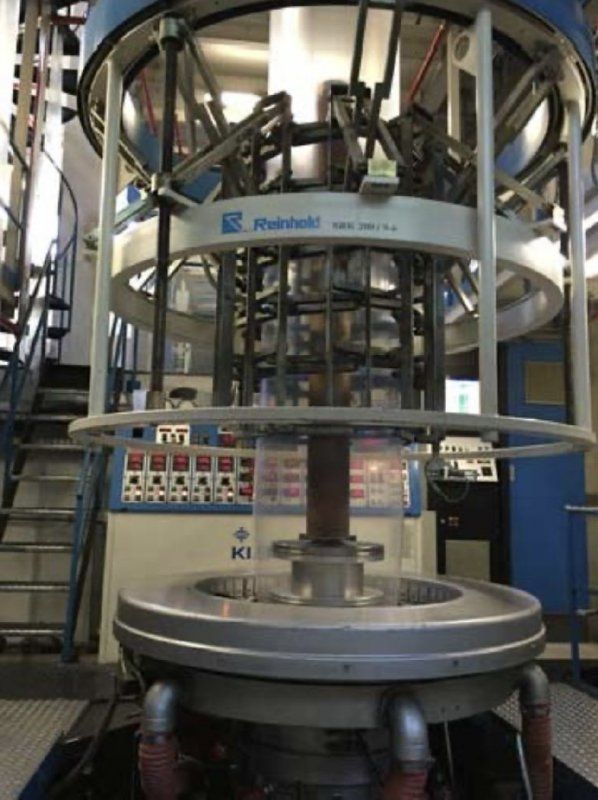

Bubble cage Reinhold SRK 200/ 9-6
Take off unit Reinhold
Corona treatment AFS Nax 52 mN/m
Web guide Ehrard & Leimer
Rewinder Type Double back to back
Rewinder description Wintech
Note Tower structure included
