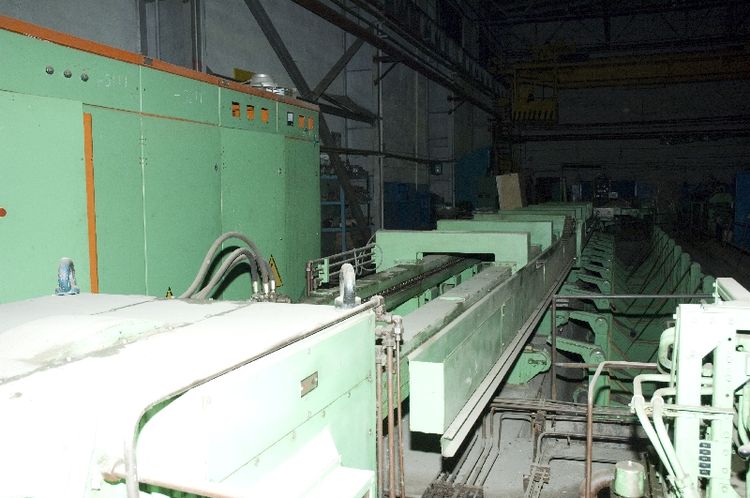

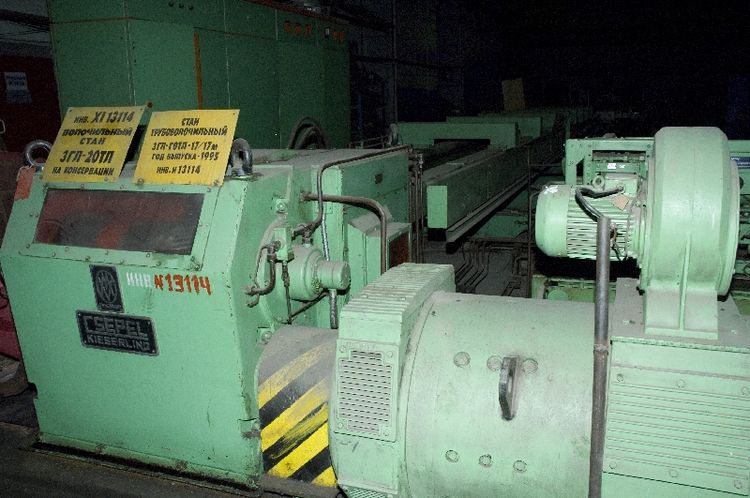

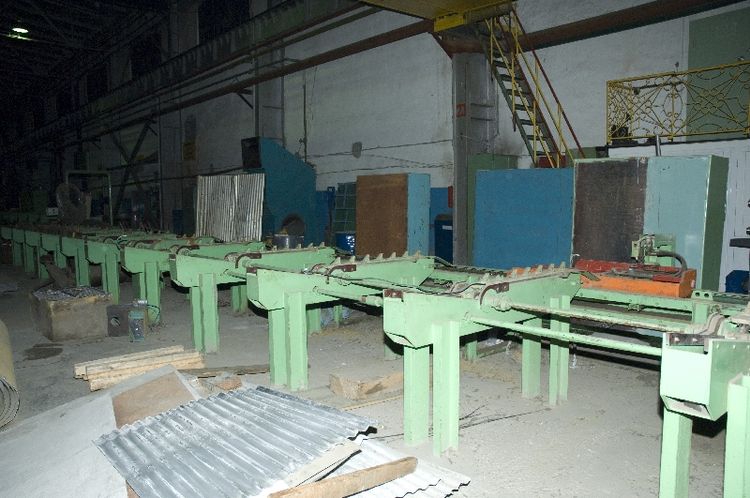

Kieserling 20 TL Tube, Mill

Ref : 594502-3
Condition : Used
Manufacturer : Kieserling
Model : 20 TL
Short Description : Tube, Mill
Year(s) : 1989
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 10 Sep. 2012

Brand: Kieserling
Model: 20 TL
Year: 1989
Tube, Mill

SPECIFICATIONS:
I.I. mechanical data
• Max. power of drawing 500 кN
• Number of drawing place 1
• Speed of drawing 3-35 м/min
• Drawing speed with power of 500 kN 35 м/min
Reverse speed
- Fast movement 139 м/min
- Slow movement 16 м/min
- Crawl movement 4 м/min
- Main power 310 кW .

Range of clamping :
• 135-160 мм
• 160-200 мм .
• 200-260 мм .
• 260-300 мм .
• 300-340 мм .
• Max. eject power during sharpening 500 кN
• Max pushing enter 1250 мм
• Max. Movement of mandrel 800 ММ

• Length of the machine 32 400 мм
• Width of the machine 7 900 мм


Data of the work peace
- Max. external diam. Ø 350 ММ
- Min. external diam. Ø 170 мм
- Thickness 1-5 мм
- Material Al,
- Max. Lenght 10 000 мм
- Min. Lenght 3 500 мм

Products data
- Max.external diam Ø 335 мм
- Min external diam Ø 150 мм
- Max. Length 12 000 мм
- Min length during automatic work 4 000 мм
