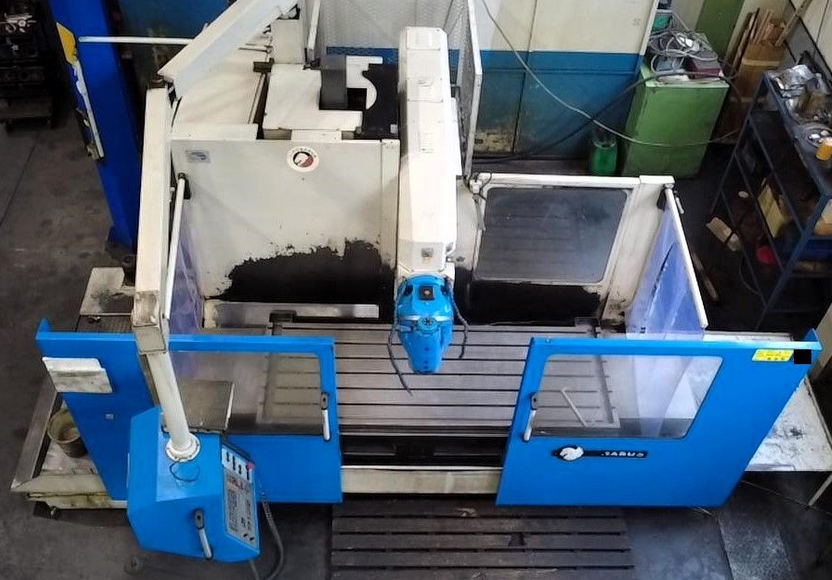

Kiheung KNC-U800 3,000 Rpm

X-axis travel: 1,900 mm
Y-axis travel: 980 mm
Z-axis travel: 800 mm
Height from table to vertical spindle nose: 50 – 900 mm
Height from table to horizontal spindle center: 130 – 980 mm
Table working area: 2,300 x 775 mm
T-slot: 6 x 22H7
T-slot spacing: 125 mm
Maximum workpiece weight: 3,500 kg
Spindle taper: ISO 50, DIN 69871
Spindle speed: 03,000 rpm (2-stage: 0689 / 690~3,000)
Spindle motor: 18.5 kW
Feed motor X-/Y-/Z-axis: 20/20/20 Nm
Coolant pump motor: 500 W
Lubrication pump motor: 90 W
Hydraulic motor: 550 W
Feedrate: 5,000 mm/min
Rapid traverse: 10,000 mm/min
CNC control: HEIDENHAIN TNC 426
Universal milling head manual
Documentation included
CE marked
Machine footprint: 5.6 x 4.8 x 3.0 m
Machine weight: 12 t
No tool changer
