1/1

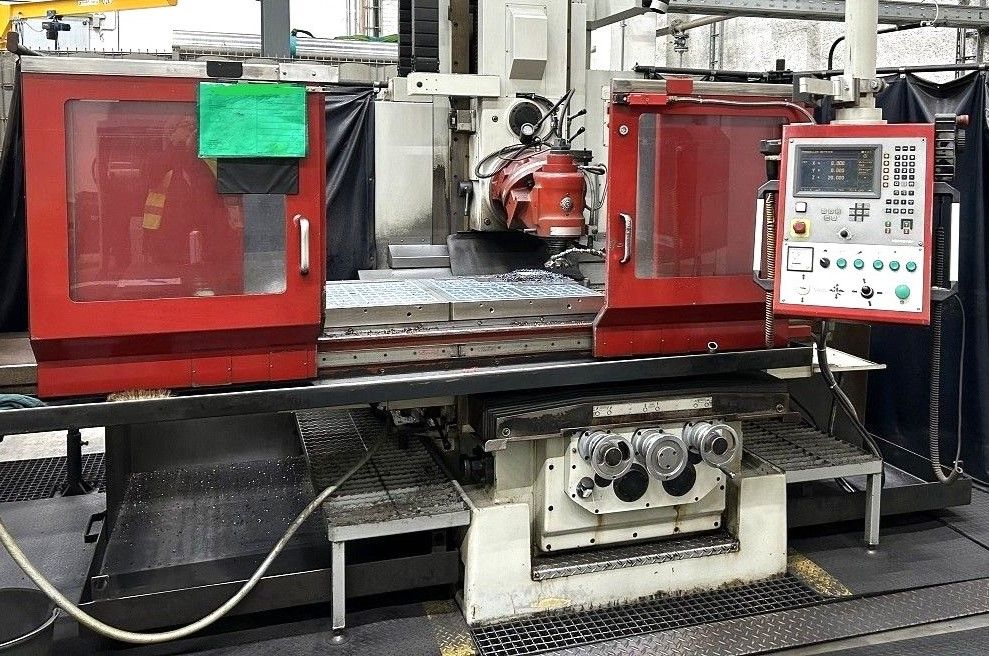

Kiheung POINT U 6 1600 U/min
Ref :
2787861-3-MT
Condition :
Used
Manufacturer :
Kiheung
Model :
POINT U 6
Spindle Speed :
1600 U/min
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
x-Way 1600 mm
y-Way 710 mm
z-Way 700 mm
HEIDENHAIN TNC 124
Electronic handrad
Univ.-milling head with hydr. tool clamping
Table enclosure
Coolant system
Table load max. 3000 kg
Spindle recording SK 50 DIN 69871
Spindle speeds - stepless 40 - 1600 U/min
Spindle motor 11 kW
Distance table / vertical milling spindle 50 - 750 mm
Distance table / horizontal spindle 60 - 760 mm
Feeds X/Y/Z axis 2000/2000/1000 mm/min.
Rapid traverse X/Y/Z axis 5000/5000/2500 mm/min
Feed motor 3 kW
Table clamping surface 2200 x 550 mm
Total power requirement 15 kW
Dimensions of the machine L x W x H 3.50 x 2.82 x 2.70 m
Machine weight approx. 8 t
