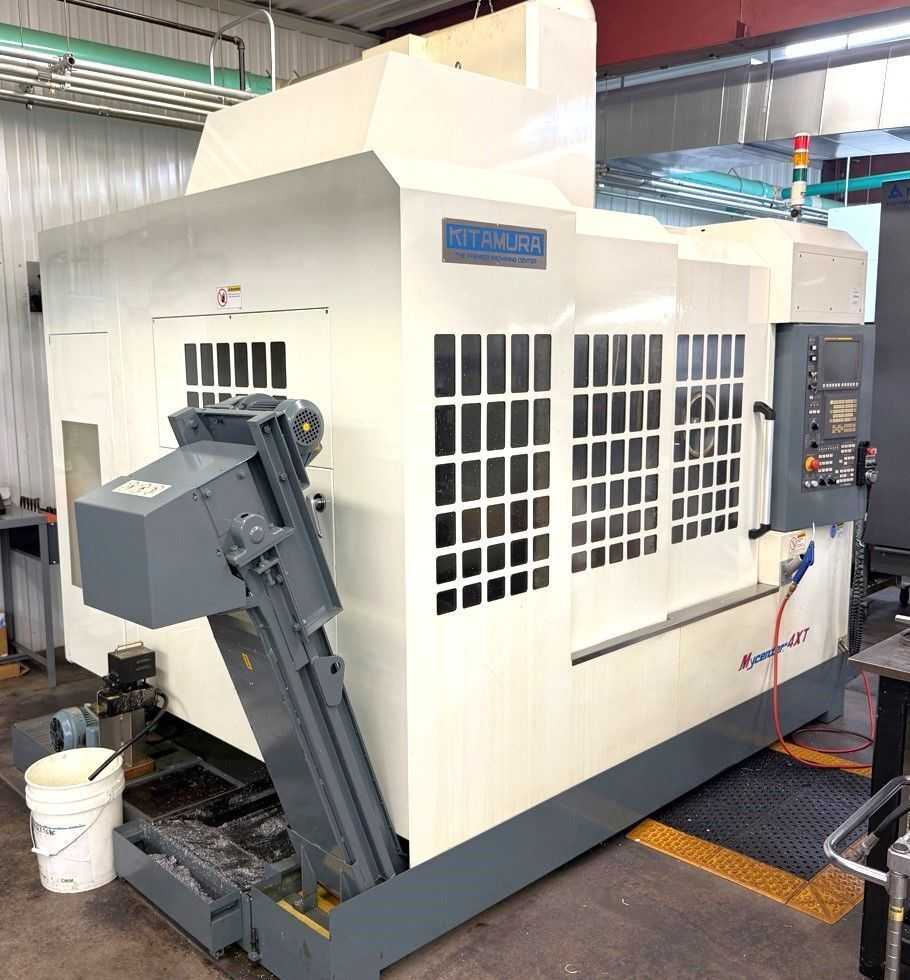

Kitamura MYCENTER 4XT Universal Trunnion Table 5 Axis

Table size: 15.75"
Maximum work size: 23.62" x 14.3"
X-axis travel: 31.5"
Y-axis travel: 24"
Z-axis travel: 20"
A-axis travel: -42° to +110°
C-axis travel: 360°
Rapid traverse X, Y, Z: 1417 IPM
Main spindle speeds: 15,000 RPM
Main spindle taper: CAT 40 BIG+
Main spindle horsepower: 35 HP
Automatic tool changer: 30 ATC
Approximate floor space: 88"W x 119"D x 119"H
Approximate machine weight: 17,250 lbs
Control: FANUC 0i-MD CNC
Built-in 4th/5th axes trunnion table
4 axes simultaneous control (4+1)
High-pressure through spindle coolant: 220 PSI
Chip conveyor
Spindle chiller
Box ways (4 box ways on Y-axis)
