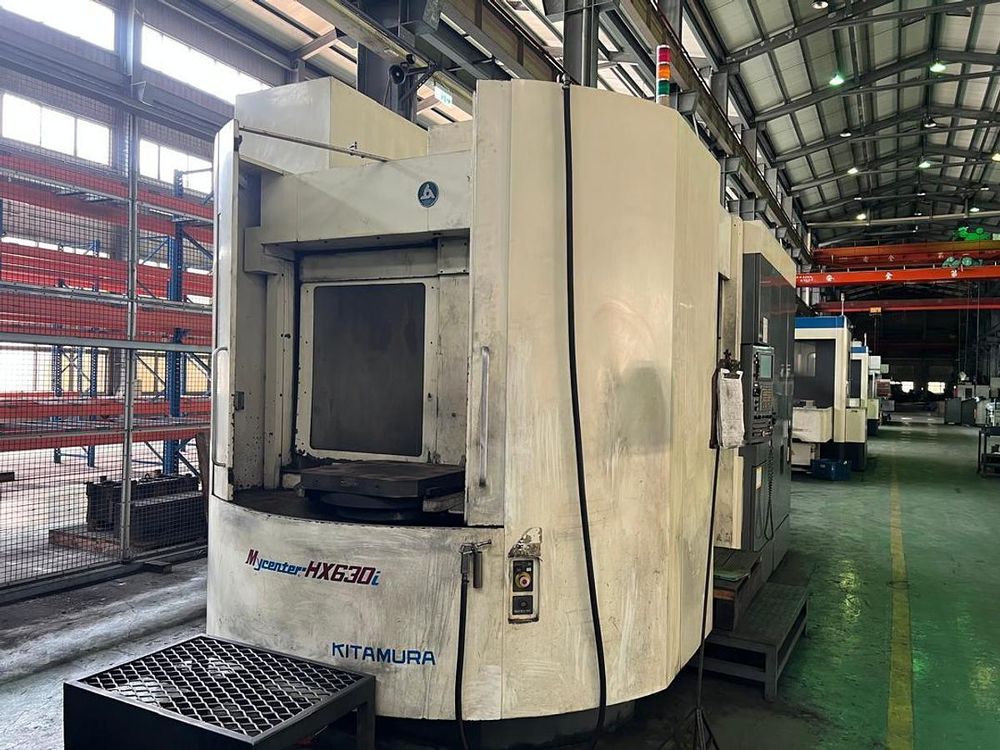

Kitamura Mycenter-HX630i 4 Axis

Ref : 2744424-3-AW

Condition : Used

Manufacturer : Kitamura

Model : Mycenter-HX630i

Nb Of Axis : 4 Axis

Year(s) : 2004

Quantity : 1

Location : Seller or machines location:
ASIA (South East)

X-axis travel 1050 mm
Y-axis travel 850 mm
Z-axis travel 900 mm
Rotary table (4th axis) yes
Control Fanuc 18M
Table length 629.92 mm
Table width 629.92 mm
Max. part weight 1198 kg
Number of tool pockets 50
Spindle taper 50
Max. spindle speed 12000 rpm
Spindle motor power 26 kW
Max. diameter tools 125 mm
Max. weight of tools 20 kg
Voltage AC 200–230V
Frequency 50/60 Hz
Phase 3-phase
Power capacity 55 kVA
Machine weight 20463 kg
