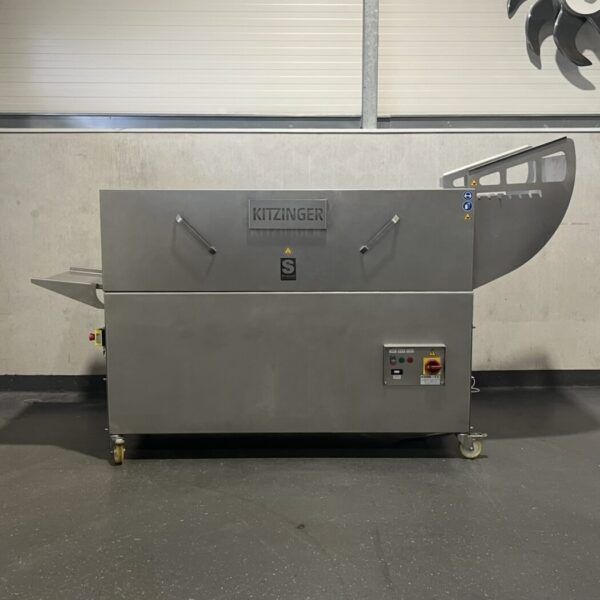

Kitzinger Spiracon 200 Crate Washer

for approx. 150-200 E2 crates/hour
incl. crate turner (1-man operation)
system design:
1. Main washing zone:
with a centrifugal pump with 2.2 kW
(900 l/min at approx. 1 bar) distributed across a
total of 60 stainless steel nozzles, enabling
thorough cleaning on all 4 sides.
A plate filter ensures that the washing solution is
constantly cleaned and continuously filtered.
tank volume 360 l
washing temperature in the main washing zone 50-55°
The crates are transported via a spiral
(KITZINGER utility model), which ensures
precise crate separation and unhindered
impact of the washing solution from below in
combination with a slight crate tilt for
improved cleaning of all sides.
2nd zone: Rinsing area:
fresh water is used to thoroughly spray the products
cleaned in the machine from all sides.
The fresh water must be at least 40°C when fed into the
machine and is heated to approx. 80°C in the system.
Approximately 300 l are required per hour.
Technical data:
total length of basic machine: 2000 mm
with inlet and outlet plate: 3000 mm
machine width: 820 mm
machine height: 1500 mm
washing tunnel passage width: up to 630 mm (adjustable)
washing tunnel passage height: 430 mm
total heating power: bath 10 kW, boiler 10 kW
the housing is completely welded and consists
exclusively of stainless steel. The base
is largely made of 3 mm sheet metal and is therefore
very durable.
The machine has the following connections:
fresh water with min. 40°C 3/4″,
flow pressure min. 1, max. 6 bar via hose connection,
consumption approx. 300 l/h,
IMPORTANT: the machine requires warm fresh water,
connection 1/2“ or 3/4”
electricity 24 kW, 400 V, 50 Hz, fuse 32A
waste water DN 40 in floor drain or channel
near the machine below the machine tank with
