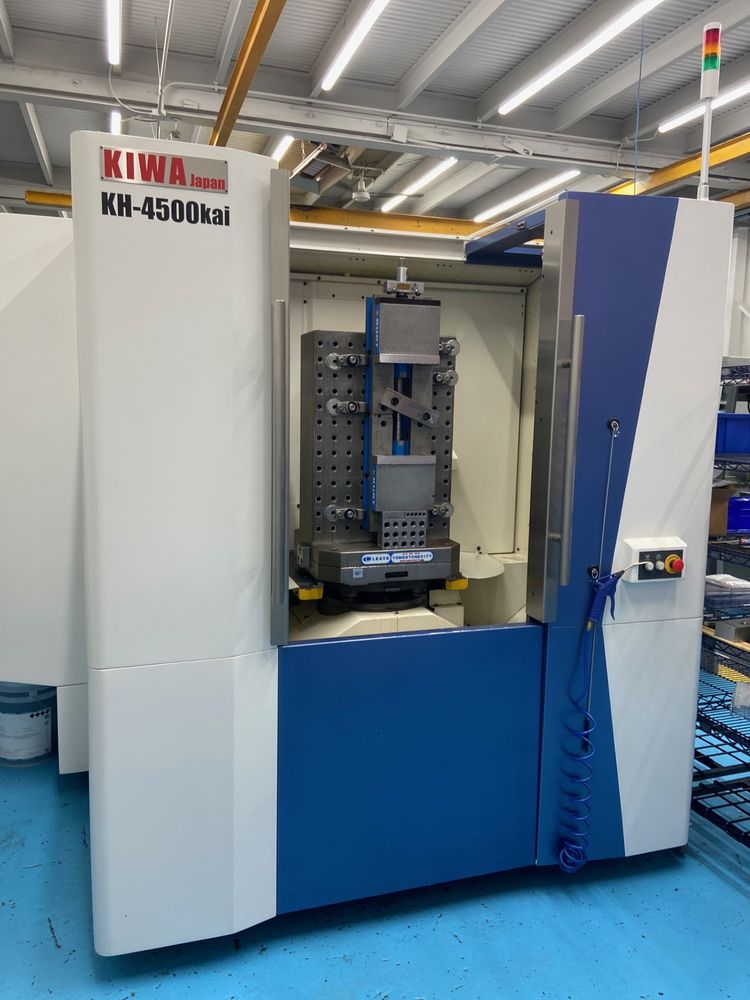

Kiwa KH4500kai 4 Axis

Fanuc 31i-B 4-Axis, CTS, Probe, 120ATC
X-axis travel 27.6 in
Y-axis travel 29.1 in
Z-axis travel 26.8 in
4th axis indexing 0.001°
Fanuc Series 31i-B control
expanded memory
tool life management
400 tool offsets
200 block look-ahead
helical interpolation
macros
rigid tapping
synchronized tapping
programmable mirror image
Renishaw OMP-400 part probe
tool setter / breakage detector
coolant through spindle
maximum working size 29.5 × 39.4 in
maximum load capacity 1100 lbs
spindle taper CAT 40 Big Plus
spindle speed 15000 rpm
spindle motor 50 hp
rapid traverse rate (X/Y/Z) 3149 IPM
cutting feed rate 1181 IPM
120-tool automatic tool changer
maximum tool diameter 3.7 in / 7.2 in
maximum tool length 15.7 in
maximum tool weight 17.6 lbs
tool change time 0.9 sec
chip-to-chip time 2.8 sec
pallet size 19.7 × 19.7 in
2 pallets
Chipblaster J-30 high-pressure coolant pump
chiller
oil skimmer
dual internal augers
chip conveyor
chilled ball screws
dimensions 115 × 241 × 102 in
weight 22000 lbs.
