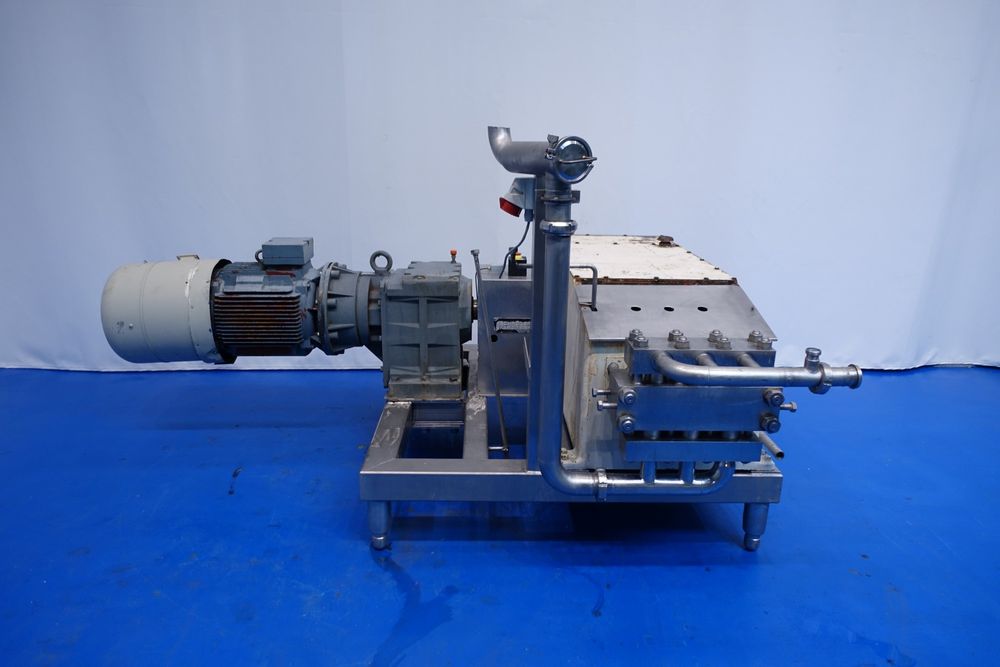

KL07 High pressure pump

Ref : 2786645-7-GO

Condition : Used

Manufacturer : -

Model : KL07

Short Description : High pressure pump

Year(s) : 1993

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

conveying pump is a 3 piston pump with 3 suction and pressure valves. It conveys the margarine emulsion coming from the premix / buffer vessel into and through the cooling cylinders of the crystalliser. Maximum pressure: 75 bar

Piston diameter: 45 mm and stroke: +/- 120 mm. Motor: 88 kW - A - n1: 1.500 rpm - i: 13,37 - n2: 112 rpm. motor with forced cooling

Capacity normally varialbe speed by freq converter can be reduced to 2000 kg/h

Connections: 1 x 2,5"" Din and 1 x 1,5"" Din. Total dimensions: 288x210x155 (lxwxh) cm

weight: 2.840 kg."
