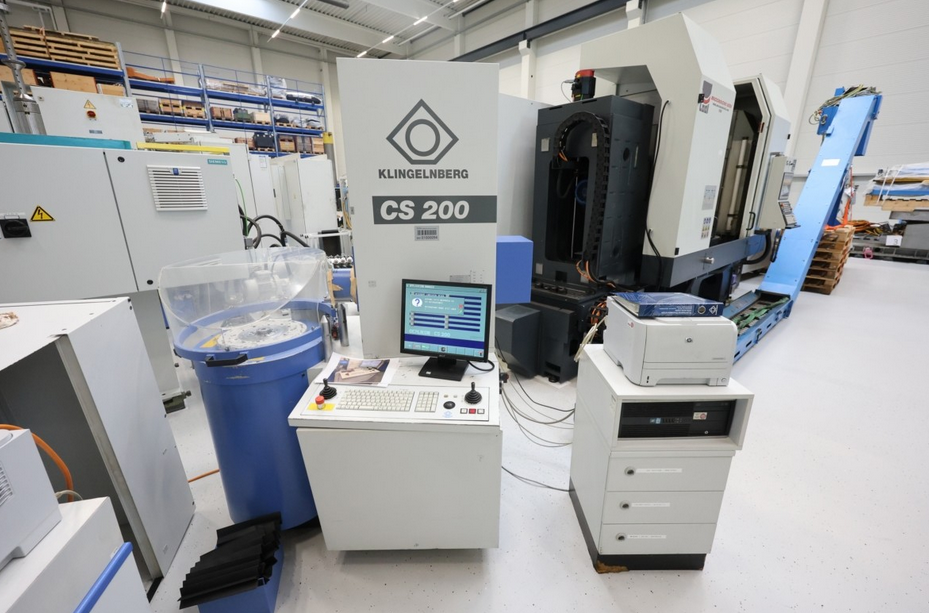

Klingelnberg, Oerlikon CS 200

Z-Axis Travel: 200 mm
Clamping Diameter (Cutter Heads): max. 550 mm
Max Cutter Head Weight: 150 kg
Mounting Plate Diameter: 360 mm
Mounting Cone Nominal Diameter: 500 mm
Machine Weight: 2.3 t
Machine Dimensions: 2 x 1.5 x 2.03 m

Cutter Head Setup and Measuring Machine
Operator-guided setting and test sequence
Semi-automated measurement cycle
Automatic measurement documentation system
Graphical display of cutter head and results
Tolerance checking system
Run-out diagram measurement output
Radial position inspection of cutting edges
Measurement result assignment to knives
Interface for neutral data
Compatible cutterhead systems: ARCON, RSR, Spirapid, SPIRON, TRI-AC
