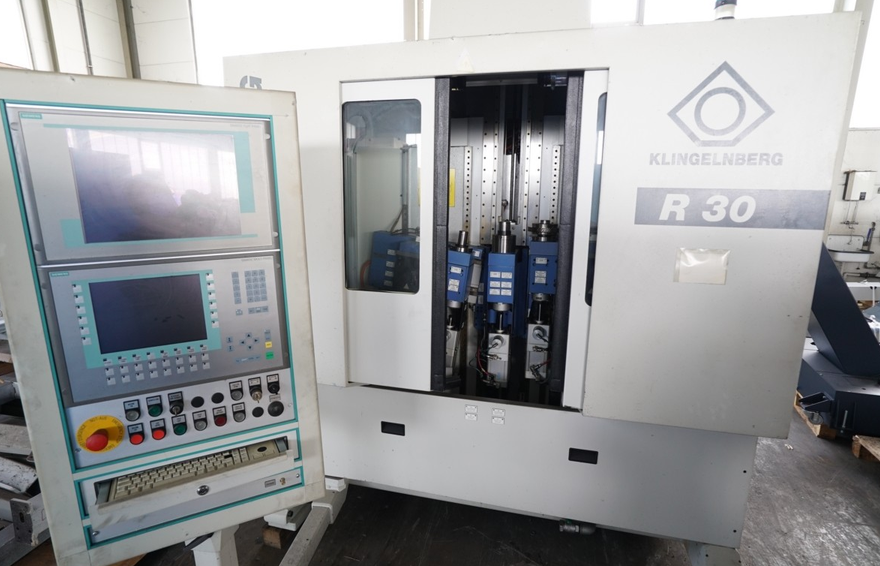

Klingelnberg, Oerlikon R30 Variable Gear Testing Machine
Ref :
2802649-3-GO
Condition :
Used
Manufacturer :
Klingelnberg, Oerlikon
Model :
R30
Spindle Speed :
Variable
Short Description :
Gear Testing Machine
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Workpiece Diameter: 36–300/400 mm
Axis Distance: 135–290 mm
Distance Between Centers: 100–550 mm
Max Wheel Diameter: 400 mm
Spindle Speed: 3,000 RPM (stepless)
CNC Control: Siemens 840D
Single Flank Rolling Test Capability
Double Flank Rolling Test Capability
Structure-Borne Noise Test
Heli Testing (Two-Flank Contact)
Up to 6 Test Slides
Machine Table with Workpiece Drive
Swiveling Pneumatic Unit
Spray Oil Lubrication System (Vogel)
Oil Mist Extraction System (Elbaron)
Machine Weight: 4,000 kg
Machine Dimensions: 2000 × 3055 × 2788 mm
