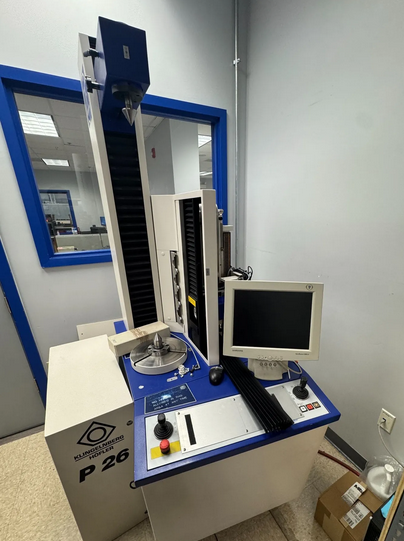

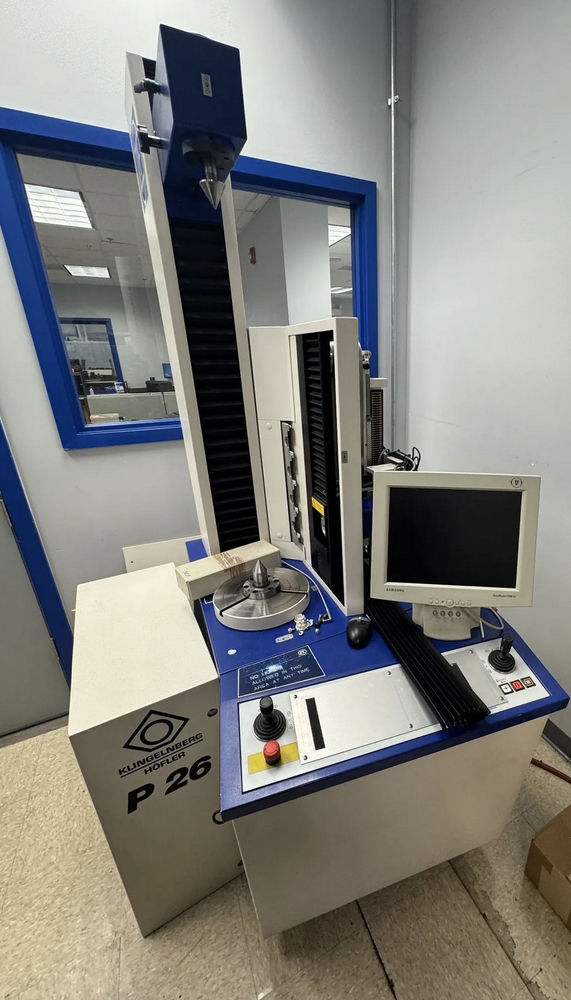

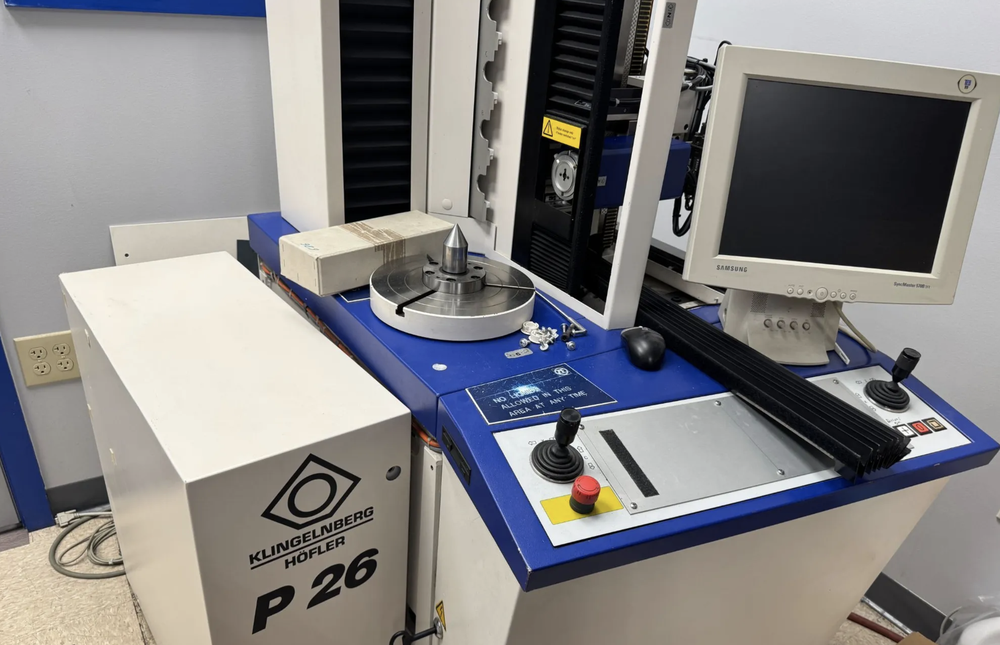

Klingelnberg P26 Variable Speed Gear Tester

Maximum gear diameter: 260 mm
Module range: 0.35 to 12 mm
Minimum helix angle: 0°
Maximum helix angle: 90°
Vertical measuring range (Z axis): 400 mm
Vertical measuring range (optional): 550 mm
Distance between centers: 50 to 600 mm
Distance between centers (optional): 50 to 800 mm
Permissible workpiece weight: 80 kg
Permissible moment of inertia: 1 kg·m²
Tailstock with center
T-slotted rotary table with center
4-position probe station
Probes
Tailstock travel: 33.5"
Axial travel: 21.7"
Maximum workpiece diameter: 10.2"
Maximum workpiece length: 31.5"
Control manufacturer: Other
Voltage: 460 V
Frequency: 50/60 Hz
CE compliant
Machine dimensions: 1465 × 1310 × 2000 mm
Machine height (optional): 2200 mm
Machine weight: 1600 kg
