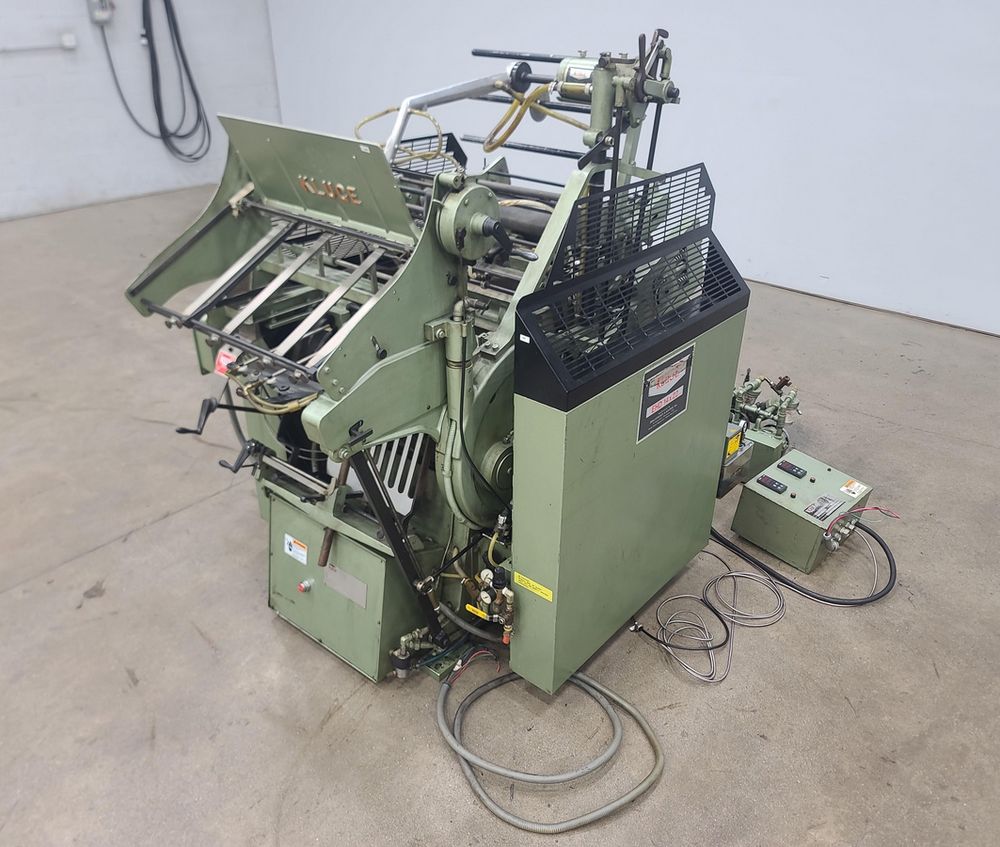

Kluge EHD

Automatic Die Cutter w/ Foil
Included Components:
Kluge 14 in × 22 in EHD automatic die cutter
Hot foil stamping system
Foil units mounted on wall

Features:
Automatic platen die cutting, embossing, and foil stamping press
Vacuum-operated sheet feeder
Mechanical foil control system with multiple foil draws
Dual-zone heated die plate for foil stamping operations
Delayed dwell technology for improved foil transfer

Typical Applications:
Folding carton and packaging production
Presentation folders and greeting cards
Labels and specialty print finishing
Embossing and foil stamping applications

Technical Specifications:
Platen Size: 14 in × 22 in (356 × 559 mm)
Maximum Sheet Size: 17 in × 24.75 in (431 × 628 mm)
Minimum Sheet Size: 4 in × 5 in (102 × 127 mm)
Maximum Operating Speed: Up to 3,300 impressions per hour
Stock Range: Onion skin to approximately 0.200 in board
Air Requirement: 90 PSI at 10 CFM
Power Requirement: 3 HP, 230/460V, 3-phase
Machine Dimensions: 74 in × 50 in × 68 in
Machine Weight: Approximately 4,400 lb
