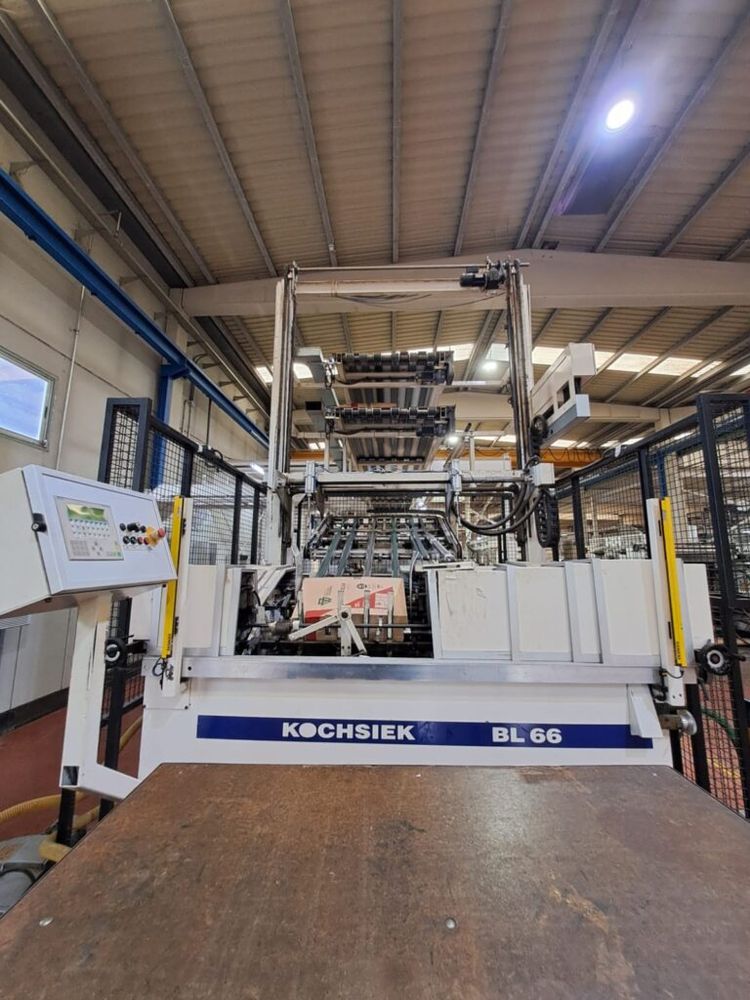

Kochsiek BL66 Bag Machines
EUROPE (Western and Northern)
A complete multiwall paper sack line
Tuber:
3 unwinders
Perforating unit
Printing unit with 4 colors
Cross pasting unit for up to 3 plies
Digital lengthwise injectors for 3 plies
Maximum repeat: 1300 mm
Minimum repeat: 380 mm
Maximum width: 650 mm
Minimum width: 200 mm
Transystem
Bottomer:
Automatic rotary feeder
Bottom patch unit each side
Double valve unit
Maximum depth: 170 mm
Minimum depth: 80 mm
Minimum distance between centers: 250 mm
Maximum distance between centers: 600 mm (with a maximum depth of 150 mm)
A single valve carriage that can hold 2 sheets.
Palletizer
In the video we are producing flour bags, but its also suitable of course for cement bags, in fact, with cement bags is even faster.
