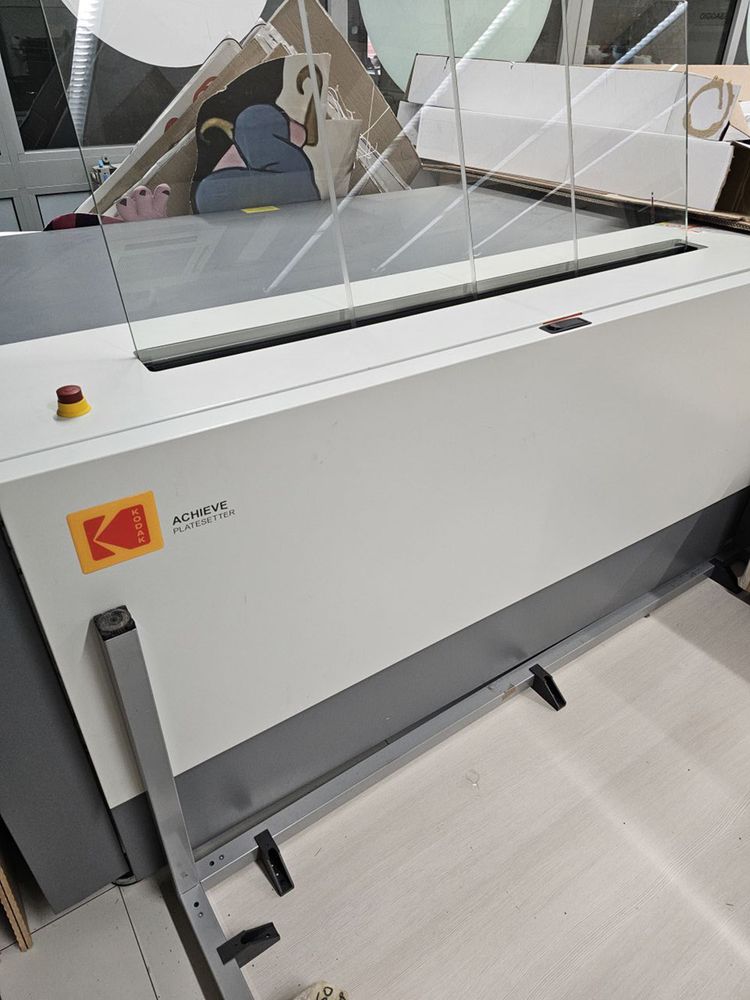

Kodak ACHIEVE T800

Mod. TEE
Technology: Thermal (830 nm), external drum, TH5 imaging head.
Resolution: 2,400 dpi or 1,200 dpi.

Throughput:
S (Standard) Speed: Up to 16 plates per hour (1,030 x 800 mm format).
F (Fast) Speed: Up to 22 plates per hour (1,030 x 800 mm format).
Repeatability: ± 5 microns (between two consecutive exposures on the same plate).
Registration: ± 25 microns between the edge of the plate and the image.
Screening: Maximum 200 lpi; optional, KODAK STACCATO screening (36 microns).
+4
Plate Dimensions
Maximum: 838 x 1,143 mm (standard) or 838 x 1,118 mm (with automation).
Minimum: 267 x 215 mm (standard) or 330 x 270 mm (with automation).
Plate Thickness: Standard 0.15 - 0.3 mm.
Plate Types: Compatible with KODAK SONORA Process-Free Plates, KODAK Thermal Plates (Electra, Trillian), and other third-party thermal plates.
+3
Automation and Options
Standard Configuration: Semi-automatic loading/unloading.
Automation Options:
Auto Unload: Automatic unloading.
Autoloader: Automatic loading/unloading of up to 40 plates.
Single Cassette Unit (SCU): Loads/unloads up to 120 plates.
Multi-Cassette Unit (MCU): Up to 480 plates, with capacity for 4 different formats.
