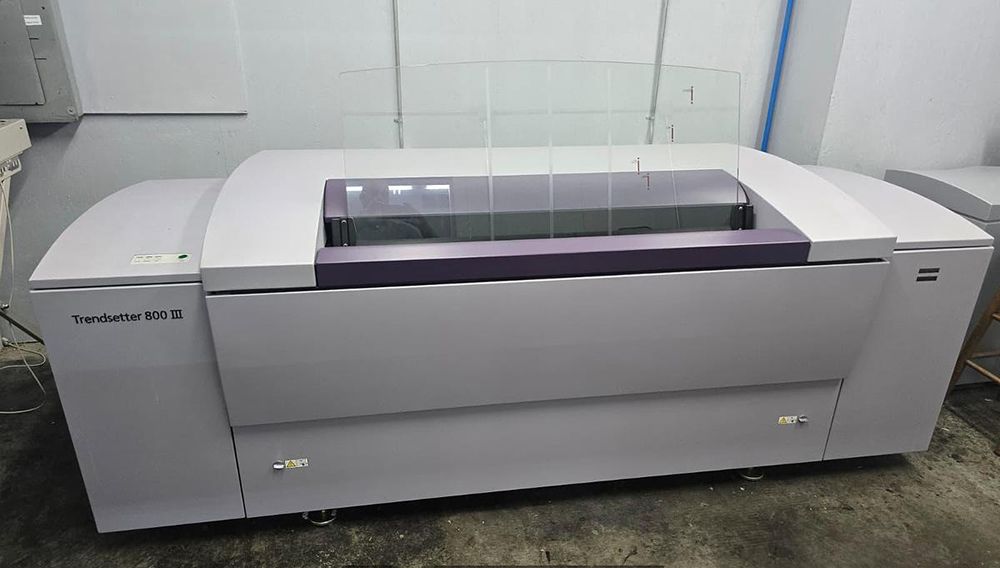

Kodak Trendsetter 800 III

Comes with Kodak RIP.
Imaging Technology : Kodak SQUAREspot Thermal Imaging
Laser Type : 830 nm infrared thermal laser
Plate Type : Thermal aluminum offset plates (process, processless, or chemistry-free depending on plate type)
Plate Size (Maximum) : 32.8" × 45.3" (838 × 1,150 mm) with 2L option; standard models typically up to 27.6" × 38.8" (700 × 985 mm)
Plate Size (Minimum) : Approximately 10.5" × 8.5" (267 × 215 mm), depending on configuration
Plate Thickness0.008"–0.012" (0.20–0.30 mm)
ResolutionStandard 1200 dpi; optional 1270, 2400, or 2540 dpi
Screening Conventional AM screening, Staccato FM Screening, Hybrid Screening
Maximum Line Screen : Up to 450 lpi (with high-resolution option)
Repeatability : ±10 microns
Registration Accuracy Approximately ±40 microns between plates
Imaging Method External drum
Plate Loading Semi-automatic standard
Automation Options: Auto Unload, Single Cassette Loader, Multi-Cassette Loader, Autoloader
Workflow Compatibility : Kodak Prinergy, TIFF Downloader, and most third-party RIPs
Connectivity Ethernet
Power Requirements : 208–240V, 3 Phase (varies with options)
Weight : Approximately 1,450–1,800 lbs (650–820 kg), depending on configuration
Footprint : Approximately 79" W × 47" D × 63" H (larger with loaders)
