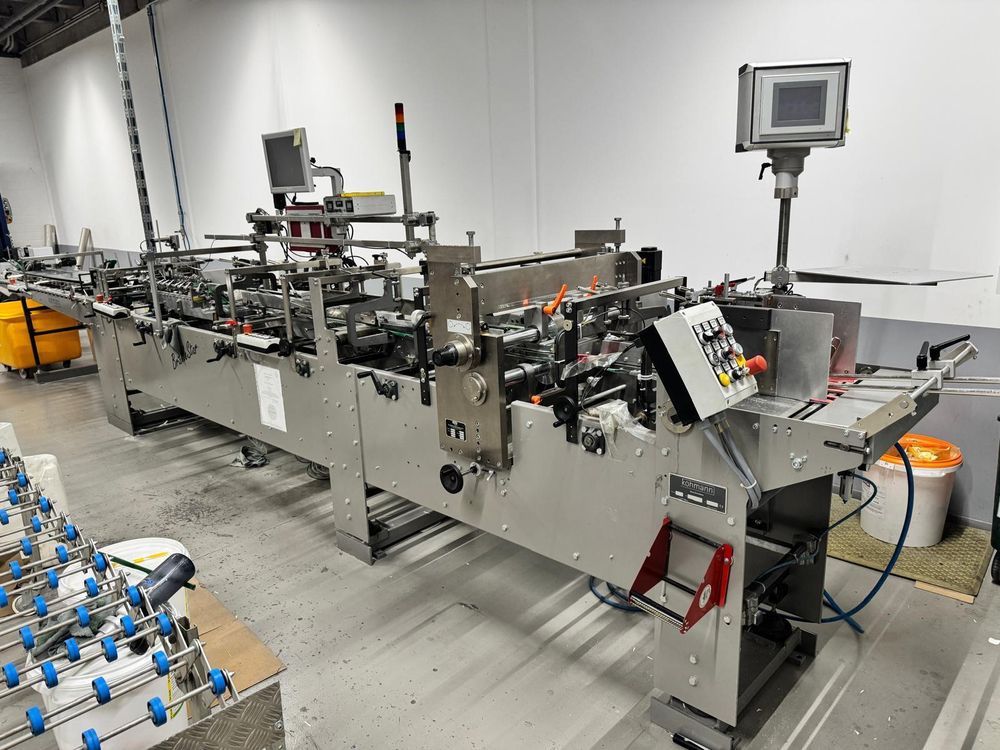

Kohmann BrailleStar 520

Max. blank width: 620 mm
Min. blank width: 60 mm
Min. blank length: 50 mm
Max. blank height: 400 mm
Max. belt speed: 150 m/min.

The ideal folding box gluing machine to manufacture folding boxes with Braille relief dots for small and medium sized production
Braille-station for embossing Braille relief dots
Feeder with vibrating device
Infinitely adjustable distance between carton blanks
Pre-breaking crease 1+3
Bottom disc glue unit
Electronic counter with digital display, including preset counter
Delivery with kick-out device
Drying and press section synchronised with machine speed, can be controlled separately
Belt speed 150 m/min
Overhauled and upgrated in 2022: Integration HHS QS System Xpect Code reader, glue line detector

TECHNICAL DATA:
Max. belt speed: 150 m/minutes
Max. blank width: 520 mm
Min. blank length: 50 mm
Max. blank length: 400 mm
Blank quality: 200-400 g/m2
Dimensions of the machine: length approx. 7000 mm, width approx. 1200 mm
Handypack Tünkers FAS 480 raises the imbricated boxes and directs them at a right angle for sidewise transport.
The counting impulse set by the machine is maintained.
Therefore, it is easy to unload the boxes.

Technical data :
TÜNKERS FAS 480
Box materials Carton E flute B flute
Types of boxes Straight-line boxes 4-corner boxes 6-corner boxes Crash-lock boxes
Box sizes in mm W x L Min. 40 x 40 Max. 420 x 480
Height of the box flow in mm max. 50
Electric connected load 1kVA
Net weight in kg ca. 600
