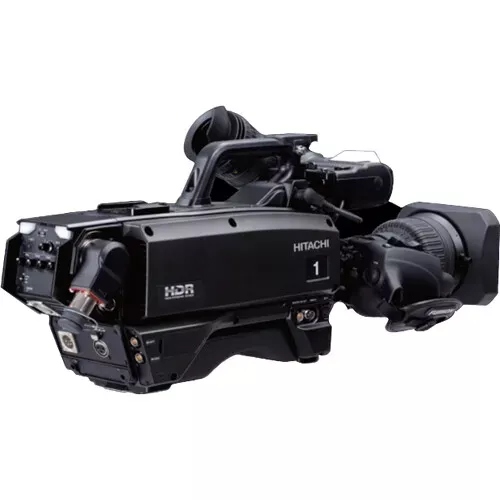

Kokusai Denki Electric Z-HD6500 Studio Production Camera Package

1080p Studio Production Camera Package
Three 2/3″, 3840 x 2160 global shutter CMOS image sensors
1000 TVL HD resolution
High sensitivity of f/10
Minimum sensitivity of 2 lux
>62 dB signal-to-noise ratio
Streamlined, unibody lightweight camera chassis with low center of gravity
New state-of-the-art processors for future-proof, advanced digital processing technology
Multi-format global design output signals for most TV broadcast and production standards
SMPTE-311M hybrid optical fiber cable provides transmission and camera power up to 6500′
Single-mode fiber can be used up to 6.2 miles without external adapters or accessories (with external head power)
High-performance HD offers simultaneous 1080p, 1080i, and 720p output
Dual workflow with simultaneous HDR and SDR
High Dynamic Range (HDR) with HLG and adjustable profiles
Motorized optical filter wheel
Low power consumption
Integrated prompter power, video monitoring, and intercom connectivity at the camera body
Independent HD-SDI viewfinder output for crane or jib installations
Trunk data interface for video transport and control of TCP/IP-capable devices connected to the camera head
Control panels (SU-1000 and RU-1500 series) can control up to 128 cameras over a TCP/IP network
Two independent CCU returns; inputs can be HD-SDI single or dual link, or SD analog or digital selectable
RLAC (real-time lens aberration correction) improves the image captured by most modern digital lenses
Direct data transfer from SD memory cards used at the camera head and control panels
HD signal linear masking and 12-vector color correction
Ultra-gamma (selectable gamma table)
Preset masking (6 settings: DEFAULT, ITU-709, SMPTE-240M, SMPTE-2020, NTSC, EBU)
3-channel flesh-tone masking and multiple memory; flesh-tone detail correction settings
Color knee, knee saturation, and knee detail functions
Real-time and offline diagnostic system with character display superimposed on PIX video output
