1/1

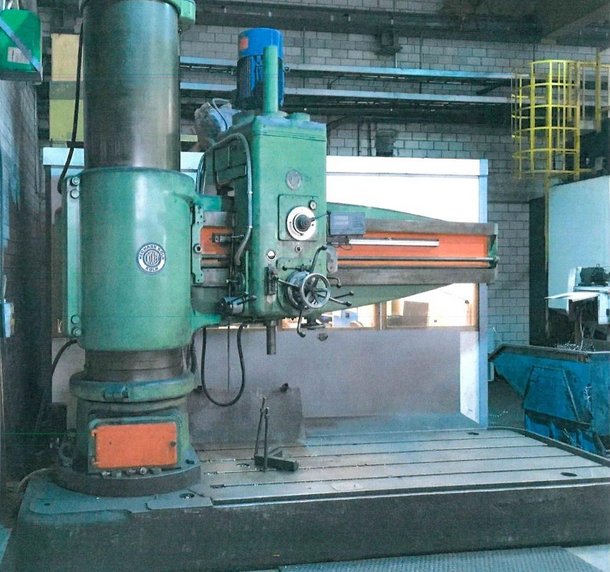

Kolb HK 126 Bore capacity in steel: 120 mm
Ref :
2786657-3-MT
Condition :
Used
Manufacturer :
Kolb
Model :
HK 126
Spindle Speed :
Bore capacity in steel: 120 mm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Bore capacity in cast iron: 160 mm
Arm length: 2500 mm
Max. workpiece height: approx. 1800 mm
Drilling radius min./max.: 880 / 2825 mm
Throat: 555 mm
Column diameter: 650 mm
Spindle diameter: 90 mm
Spindle taper: MK 6
Quill diameter: 160 mm
Spindle speed range: 10 – 660 rpm
Bore depth: 650 mm
Feed rate: 0.07 – 3.0 mm/rev
Distance spindle to base plate: min. 300 mm / max. 2100 mm
Vertical arm adjustment: 1150 mm
Base plate surface: 3000 x 1550 mm
Machine height: 4500 mm
Total power requirement: 15 kW
Machine weight: approx. 16 t
Right-hand / left-hand spindle rotation
Thread cutting device
DRO HEIDENHAIN on X and Z axes
Coolant system
