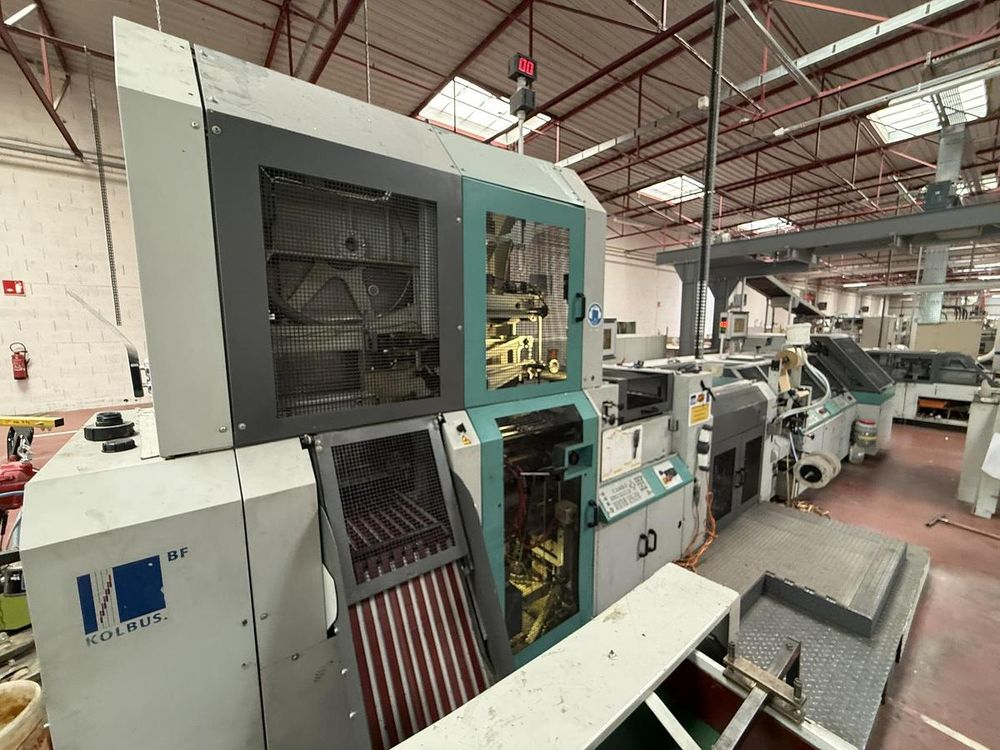

Kolbus BF 527

Book Production Line
For rounding, backing and casing-in of book block in hard, flexible or plastic cases.

Overview:
BF 527 book production line
FE 604 book forming and pressing machine
DS 391 stacker

Configuration:
BF 527 book production line
copilot system with touch-screen monitor
measuring table
infeed conveyor from the left, barrier and star feeder
hot air heater
automatic block thickness control
rounding and backing station
5 stations-frame:

2 gluing stations
WITHOUT gauzing station
marking ribbon gluing device
backlining and headbanding station
pressing station

case prestacking conveyor
case magazine
case bending machine
case forming station
casing-in station
EMP glue pump monitoring
delivery with delivery conveyor to the left

Technical specifications:
mechanical speed: up to 60 cycles/min
format size book block max.: 375 x 305 x 80 mm
format size book block min.: 100 x 100 x 2 mm

FE 604 book forming and pressing machine
copilot system with touch-screen monitor
right hand infeed
heater monitoring unit
pressing station
integrated hydraulic
straight delivery

Technical specifications:
mechanical speed: up to 62 cycles/min
size range max.: 385 x 315 x 90 mm
size range min.: 100 x 70 x 6 mm

DS 391 stacker
turning device
pile delivery in moving direction
pass through equipment with straight delivery

Technical specifications:
mechanical speed: up to 65 cycles/min
size range max.: 382 x 305 x 80 mm
size range min.: 100 x 100 x 4 mm
stack height max.: 325 mm
